760246050 | RDT-SM12J00C0309A

Base Product: RDT

Available in:
North America

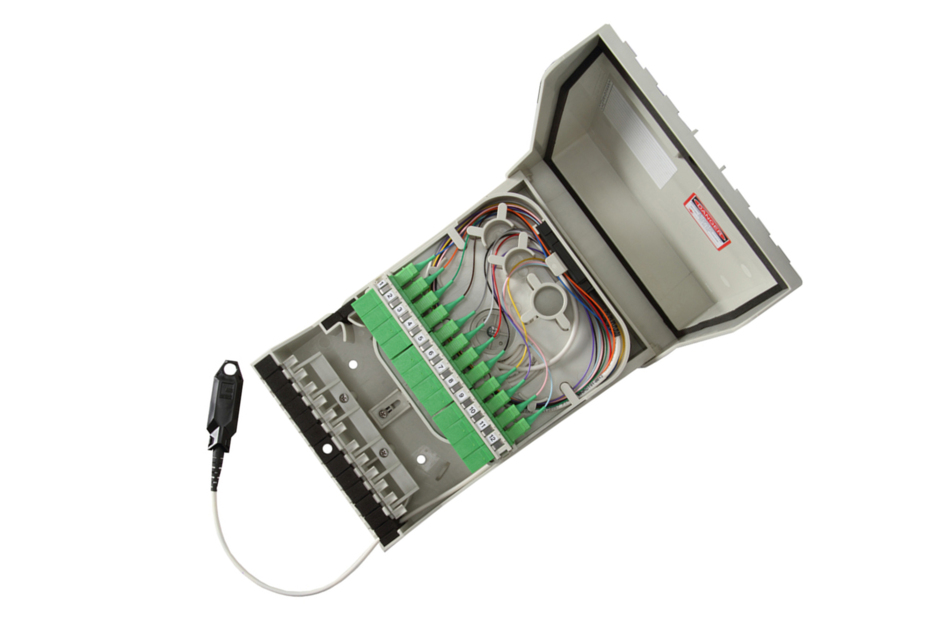

RapidFiber® Mini-RDT Distribution Terminal, 12-fiber, SC/APC, Pre-connectorised with an outdoor MPO 12-fiber connector with pulling eye, no splitters, 30 m

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Features and Benefits

Designed to provide a quick and simple solution for installing fiber in small and medium sized MDU's
Incorporates a unique fiber cable spooling system that stores up fiber cable within the enclosure
Removes the need for field termination and extensive site survey inspections

Specifications

Product Classification

Regional Availability	North America
Product Type	Fiber distribution terminal
Product Brand	RapidFiber®
Product Series	Mini-RDT

General Specifications

Functionality	Patching \| Splitting
Adapters, quantity	12
Cable Entry Location	Bottom left \| Bottom right
Cable Type	Indoor/outdoor - Stranded
Color	Gray
Interface	SC/APC
Interface, stub	MPO
Mounting	Wall
Port, quantity	12

Dimensions

Height	200 mm \| 7.874 in
Width	140 mm \| 5.512 in
Depth	60 mm \| 2.362 in
Cable Length	30 m \| 98.425 ft
Outer Cable Diameter	4 mm \| 0.157 in

Dimension Drawing

Click on image to enlarge.

Material Specifications

Material Type

Plastic

Optical Specifications

Fiber Mode

Singlemode

Environmental Specifications

Environmental Space

Indoor

Packaging and Weights

Packaging quantity
