FPCA-77YZ

Base Product: FPCA

Available in:
Europe
Middle East/Africa

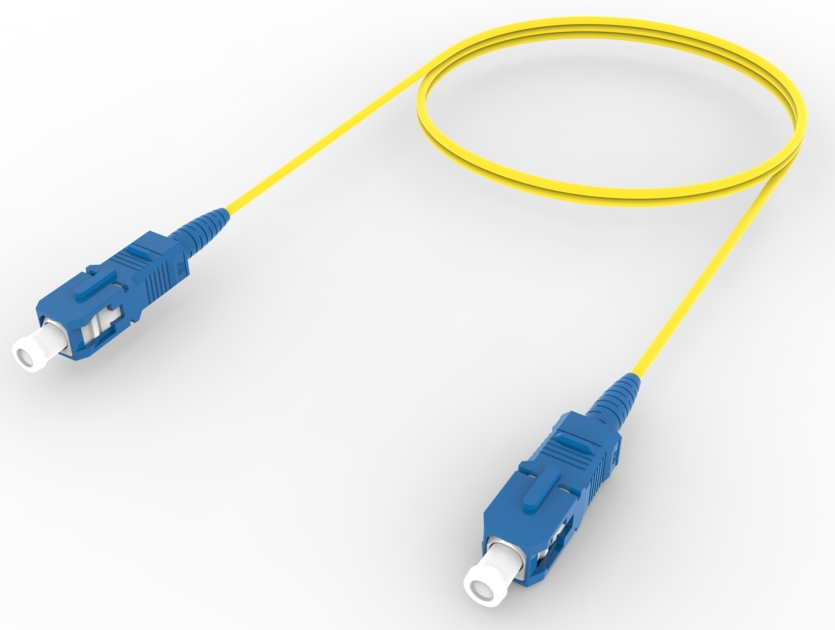

Fiber Optic Patch Cord, singlemode, 1.2 mm LSZH jacket, SC/UPC-SC/UPC, yellow

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Product Variants

Configure and display product variants of FPCA-77YZ by selecting options

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Cord Length m ft

Part Number	Cord Length
No configured items found.

Features and Benefits

1.2 mm diameter cable provides a 65% space savings over commonly used 2.0 mm cable
1.2 mm diameter fiber patch cords use Reduced Bend Radius (RBR) fiber cable
Typically used in environments where space constraints and cable routing prove most challenging

Specifications

Product classification

Regional Availability	Europe \| Middle East/Africa
Product Type	Fiber patch cord, simplex
Product Series	FPCA

General Specifications

Connector A, quantity	1
Color, boot A	Blue
Color, connector A	Blue
Connector B, quantity	1
Color, boot B	Blue
Color, connector B	Blue
Interface, Connector A	SC/UPC
Interface, Connector B	SC/UPC
Jacket Color	Yellow
Total Fibers, quantity	1

Dimensions

Diameter Over Jacket

1.2 mm | 0.047 in

Ordering Tree

Click on image to enlarge.

Optical Specifications

Fiber Mode	Singlemode
Fiber Type	G.657.A2/B2
Insertion Loss, maximum, connector A	55 dB
Insertion Loss, maximum, connector B	55 dB
Insertion Loss, ULL, maximum, connector A	0.25 dB
Insertion Loss, ULL, maximum, connector B	0.25 dB

Environmental Specifications

Environmental Space

Low Smoke Zero Halogen (LSZH)

Packaging and Weights

Packaging quantity

Regulatory Compliance/Certifications

Agency	Classification
CHINA-ROHS	Above maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS	Compliant/Exempted
UK-ROHS	Compliant/Exempted
