  6. MT-347
Warning Icon
This product was discontinued on: January 7, 2022

For other alternatives, please contact us for more information.

0 Replacement products available

MT-347

Single Pipe Support Channel Kit for 12 in wide waveguide bridge

Specifications
Finish making your selections or clear them to view relevant specifications.
Download
Single Support Channel Kits

Product Classification

Product Type Waveguide bridge channel

General Specifications

Application Waveguide bridge kit, 12 in
Mounting Pipe heads

Dimensions

Height 50.8 mm | 2 in
Width 127 mm | 5 in
Length 419.1 mm | 16.5 in

Outline Drawing

Click on image to enlarge.

Material Specifications

Material Type Hot dip galvanized steel

Packaging and Weights

Included Channel | Hardware
Packaging quantity 1
Weight, net 3.6 kg | 7.937 lb

Product Classification

Product Type Waveguide bridge channel

General Specifications

Application Waveguide bridge kit, 12 in
Mounting Pipe heads

Dimensions

Height 50.8 mm | 2 in
Width 127 mm | 5 in
Length 419.1 mm | 16.5 in

Material Specifications

Material Type Hot dip galvanized steel

Packaging and Weights

Included Channel | Hardware
Packaging quantity 1
Weight, net 3.6 kg | 7.937 lb
Click on image to enlarge.

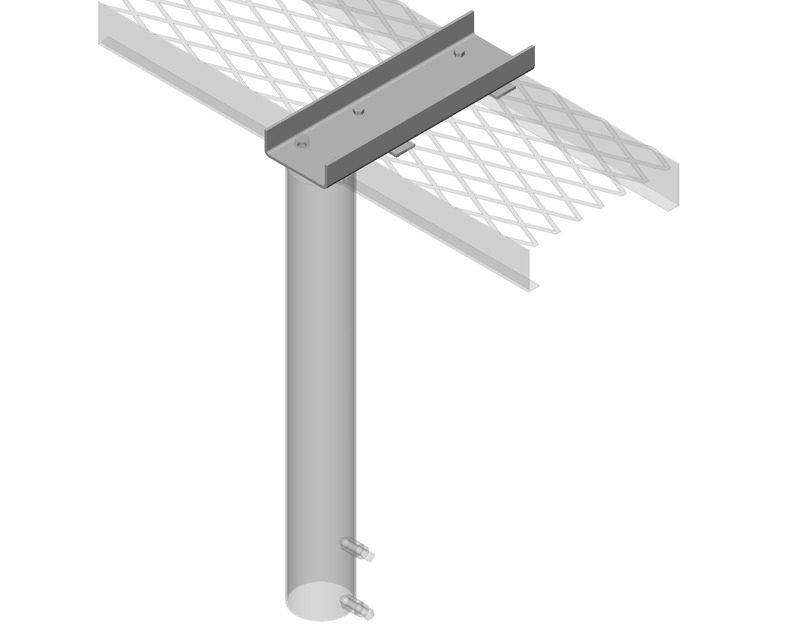

Assembly Drawing

Single Support Channel Kit for 12 in Waveguide Bridge

Product Compliance Documentation

Global Trade Data
Statement of Compliance RoHS/REACH

Product Specification

MT-347 Product specifications

Warranty

ANDREW Terms, Conditions and Warranty

Assembly Drawing

Single Support Channel Kit for 12 in Waveguide Bridge

Product Compliance Documentation

Global Trade Data
Statement of Compliance RoHS/REACH

Product Specification

MT-347 Product specifications

Warranty

ANDREW Terms, Conditions and Warranty
