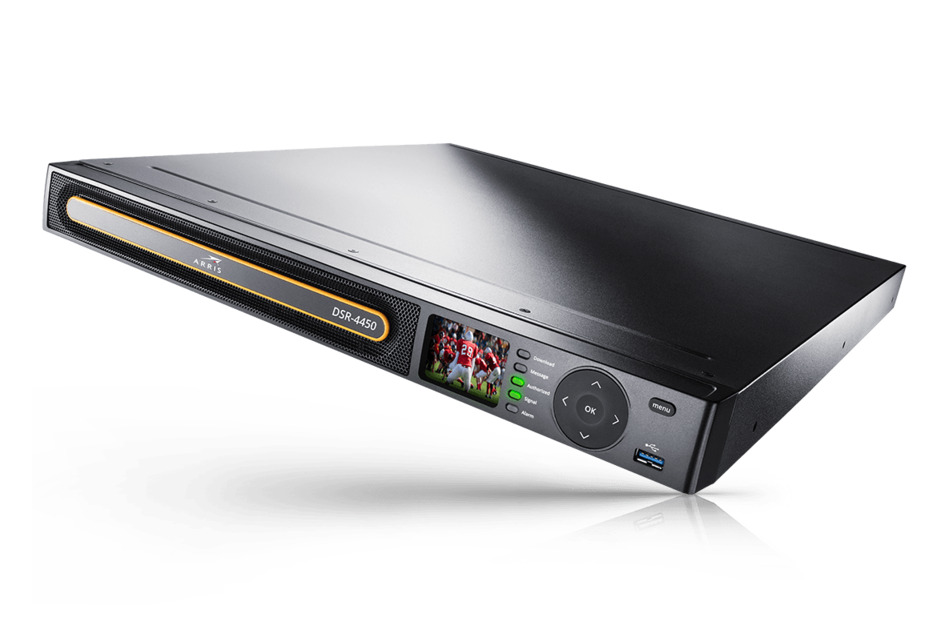

DSR-4450 | DSR-4450 Commercial Integrated Receiver/Decoder

HEVC, MPEG-4 and MPEG-2 commercial integrated receiver/decoder

Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
The DSR-4450 Integrated Receiver / Decoder takes your network to the next level through the addition of HEVC decoding technology and DVB-S2x demodulation.

The DSR-4450 also provides legacy support for MPEG-4 and MPEG-2 video decoding and DVB-S2 8PSK demodulation.

Outputs include 2 Gigabit Ethernet ports and 2 ASI ports for transport stream output and 1 composite video output for analog distribution.
  • 2 RF Inputs (L-Band) and ASI Input
  • Multi-format HEVC, MPEG-4, and MPEG-2 HD and SD processing
  • Advanced Modulation support with DCII QPSK, DVB-S2 8PSK, DVB-S2x and 8PSK Turbocode
  • DCII subtitle overlay on decoded output
  • Dual ASI and Gig-E transport outputs to distribute PID Aliased user preferred service
Specifications

General Specifications

Audio Impedance 600 ohm
Audio Output Frequency Response ±1.0 dB p-p maximum, 20 Hz to 20 kHz
Contact Closure Type Form C | SPDT
HD Resolution 1080i60 | 1080p23.98 | 720p60
Input Frequency 950–2150 MHz
Input Impedance 75 ohm
Input Type ‘F’ type connector
Rack Units 1
SD Resolution 528x480i | 528x576i (25 fps) | 544x480i | 544x576i (25 fps) | 704x480i | 704x576i (25 fps) | 720x480i | 720x576i (25 fps)
Video Formats HD | HEVC | MPEG-2 | MPEG-4 | SD

Dimensions

Height 41.91 mm | 1.65 in
Width 480.06 mm | 18.9 in
Depth 520.7 mm | 20.5 in

Electrical Specifications

Isolation, port to port 40 dB

Environmental Specifications

Operating Temperature 0 °C to +50 °C (+32 °F to +122 °F)
Operating Humidity 95%, relative maximum

Packaging and Weights

Weight, gross 5.443 kg | 12 lb

General Specifications

Audio Impedance 600 ohm
Audio Output Frequency Response ±1.0 dB p-p maximum, 20 Hz to 20 kHz
Contact Closure Type Form C | SPDT
HD Resolution 1080i60 | 1080p23.98 | 720p60
Input Frequency 950–2150 MHz
Input Impedance 75 ohm
Input Type ‘F’ type connector
Rack Units 1
SD Resolution 528x480i | 528x576i (25 fps) | 544x480i | 544x576i (25 fps) | 704x480i | 704x576i (25 fps) | 720x480i | 720x576i (25 fps)
Video Formats HD | HEVC | MPEG-2 | MPEG-4 | SD

Dimensions

Height 41.91 mm | 1.65 in
Width 480.06 mm | 18.9 in
Depth 520.7 mm | 20.5 in

Electrical Specifications

Isolation, port to port 40 dB

Environmental Specifications

Operating Temperature 0 °C to +50 °C (+32 °F to +122 °F)
Operating Humidity 95%, relative maximum

Packaging and Weights

Weight, gross 5.443 kg | 12 lb
