E14V00P58

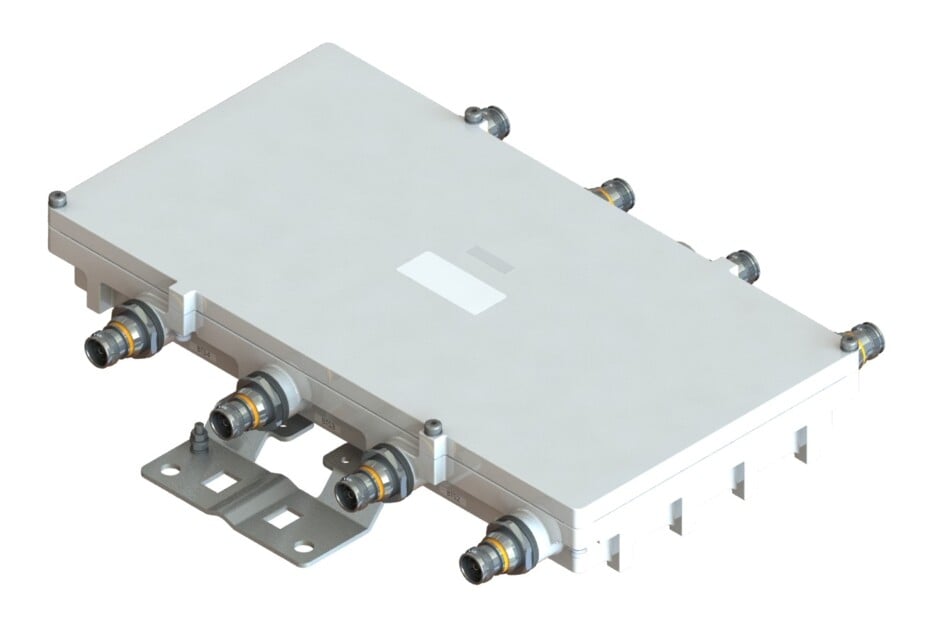

Interference Mitigation Filter with pass band 2575-2615 MHz
Features and Benefits
- New 4.3-10 connectors for improved PIM performance and size reduction
Specifications
Product Classification
| Product Type | Interference mitigation filter |
General Specifications
| Modularity | 4-Quad |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
| RF Inputs, quantity | 4 |
| RF Outputs, quantity | 4 |
Dimensions
| Height | 52 mm | 2.047 in |
| Width | 214 mm | 8.425 in |
| Depth | 402 mm | 15.827 in |
| Ground Screw Diameter | 5 mm | 0.197 in |
Outline Drawing
| Click on image to enlarge. |
Electrical Specifications, dc Power/Alarm
| dc/AISG Pass-through Path | No dc/AISG pass-through |
| Lightning Surge Current | 5 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical Specifications, Band Pass
| Sub-module | 1 | 2 | 1 | 2 | 1 | 2 |
| Frequency Range, MHz | 2575–2615 | ||
| Insertion Loss, typical, dB | 0.50 | ||
| Return Loss, typical, dB | 20 | ||
| Input Power, RMS, maximum, W | 250 | ||
| Input Power, PEP, maximum, W | 1,000 | ||
| 3rd Order PIM, typical, dBc | -150 | ||
| 3rd Order PIM Test Method | 2 x 20 W CW tones |
Electrical Specifications, Band Reject
| Sub-module | 1 | 2 | 1 | 2 | 1 | 2 |
| Frequency Range, MHz | 2500–2570 | 2620–2690 | |
| Attenuation, minimum, dB | 38.0 | 38.0 |
Block Diagram
| Click on image to enlarge. |
Environmental Specifications
| Operating Temperature | -40 °C to +55 °C (-40 °F to +131 °F) |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and Weights
| Volume | 4.5 |
| Weight, net | 6.8 kg | 14.991 lb |
| Weight, without mounting hardware | 6.3 kg | 13.889 lb |
Product Classification
| Product Type | Interference mitigation filter |
General Specifications
| Modularity | 4-Quad |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
| RF Inputs, quantity | 4 |
| RF Outputs, quantity | 4 |
Dimensions
| Height | 52 mm | 2.047 in |
| Width | 214 mm | 8.425 in |
| Depth | 402 mm | 15.827 in |
| Ground Screw Diameter | 5 mm | 0.197 in |
Electrical Specifications, dc Power/Alarm
| dc/AISG Pass-through Path | No dc/AISG pass-through |
| Lightning Surge Current | 5 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical Specifications, Band Pass
| Sub-module | 1 | 2 | 1 | 2 | 1 | 2 |
| Frequency Range, MHz | 2575–2615 | ||
| Insertion Loss, typical, dB | 0.50 | ||
| Return Loss, typical, dB | 20 | ||
| Input Power, RMS, maximum, W | 250 | ||
| Input Power, PEP, maximum, W | 1,000 | ||
| 3rd Order PIM, typical, dBc | -150 | ||
| 3rd Order PIM Test Method | 2 x 20 W CW tones |
Electrical Specifications, Band Reject
| Sub-module | 1 | 2 | 1 | 2 | 1 | 2 |
| Frequency Range, MHz | 2500–2570 | 2620–2690 | |
| Attenuation, minimum, dB | 38.0 | 38.0 |
Environmental Specifications
| Operating Temperature | -40 °C to +55 °C (-40 °F to +131 °F) |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and Weights
| Volume | 4.5 |
| Weight, net | 6.8 kg | 14.991 lb |
| Weight, without mounting hardware | 6.3 kg | 13.889 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
