SSH-1117

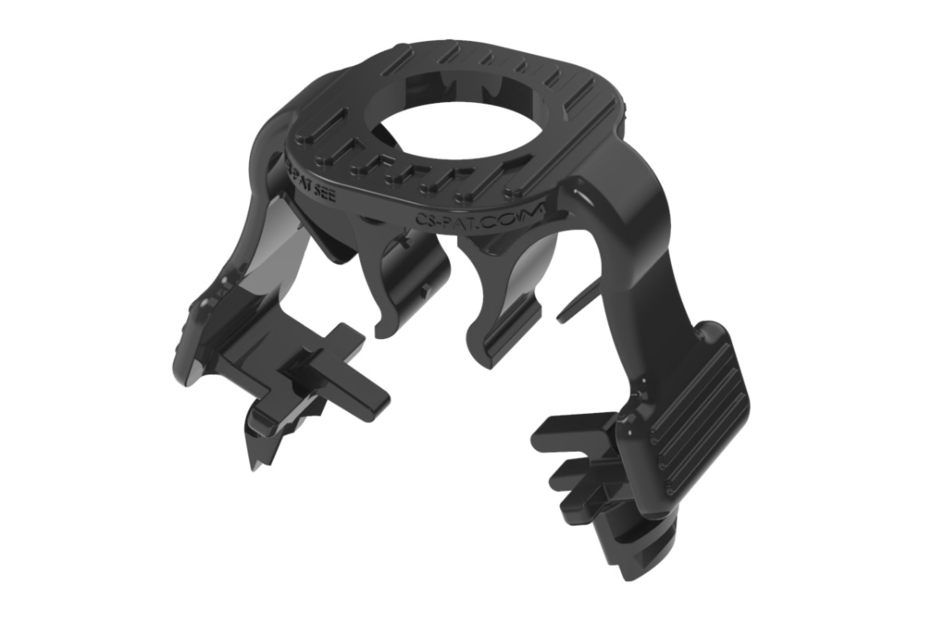

SnapTak PIM-Guard Adjustable Hanger, Version 1.1. Fits 11.0 mm to 17.0 mm Cables – PIM Free Polymer Construction. No Grommets Required.

Specifications

Finish making your selections or clear them to view relevant specifications.

View Download

Find a Partner

Support

Specifications

Product Classification

Product Type	Hanger kit
Product Brand	SnapTak PIM-Guard
Ordering Note	CommScope® standard product in Asia Pacific \| CommScope® standard product in Mexico, Central America, and South America \| CommScope® standard product in the United States and Canada

Maximum Stack Height	3
Maximum Stack Height, Coaxial	3
Height	48.4 mm \| 1.906 in
Width	34 mm \| 1.339 in
Length	59.8 mm \| 2.354 in
Compatible Diameter, maximum	17 mm \| 0.669 in
Compatible Diameter, minimum	11 mm \| 0.433 in
Diameter Over Messenger Wire, maximum	17 mm \| 0.669 in
Diameter Over Messenger Wire, minimum	11 mm \| 0.433 in

Return Loss Effect, maximum	0.1 dB
DTF Effect, maximum	0.1 dB

Material Type

Engineered plastic

Vibration Survival

≥4 hours at resonant frequency

Operating Temperature	-40 °C to +85 °C (-40 °F to +185 °F)
Environmental Strength Capability	Double cable weight
UV Resistance, minimum with no degradation	≥1000 hours exposure in accelerated UV life chamber

Agency	Classification
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS	Compliant
