WP-USBG-3
Base Product: WGB-AND-MISC-CABLE-SUPPORTS

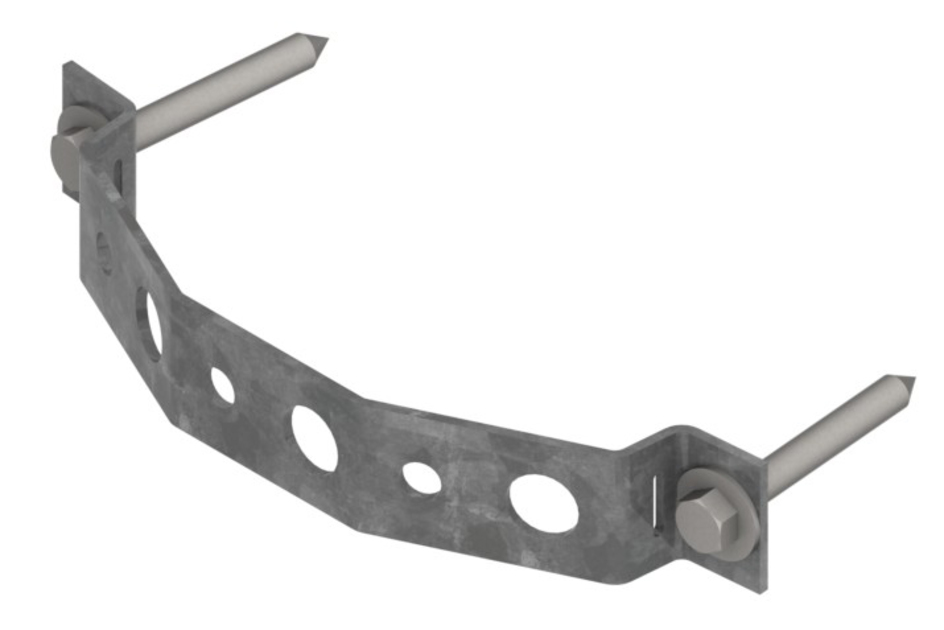

Universal Round Member Support Bracket, wood pole, for three coaxial cable runs
Specifications
Product Classification
| Product Type | Round Member Support Bracket |
General Specifications
| Cable Runs, quantity | 3 |
| Hole, quantity | 3 |
| Mounting | Wood pole |
Dimensions
| Height | 50.8 mm | 2 in |
| Width | 254 mm | 10 in |
| Length | 152.4 mm | 6 in |
| Hole Size | 3/4 in | 7/16 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Brackets | Lag screw |
| Packaging quantity | 10 |
| Weight, net | 3.6 kg | 7.937 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product Classification
| Product Type | Round Member Support Bracket |
General Specifications
| Cable Runs, quantity | 3 |
| Hole, quantity | 3 |
| Mounting | Wood pole |
Dimensions
| Height | 50.8 mm | 2 in |
| Width | 254 mm | 10 in |
| Length | 152.4 mm | 6 in |
| Hole Size | 3/4 in | 7/16 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Brackets | Lag screw |
| Packaging quantity | 10 |
| Weight, net | 3.6 kg | 7.937 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant |
|
CHINA-ROHS
|
Below maximum concentration value |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
