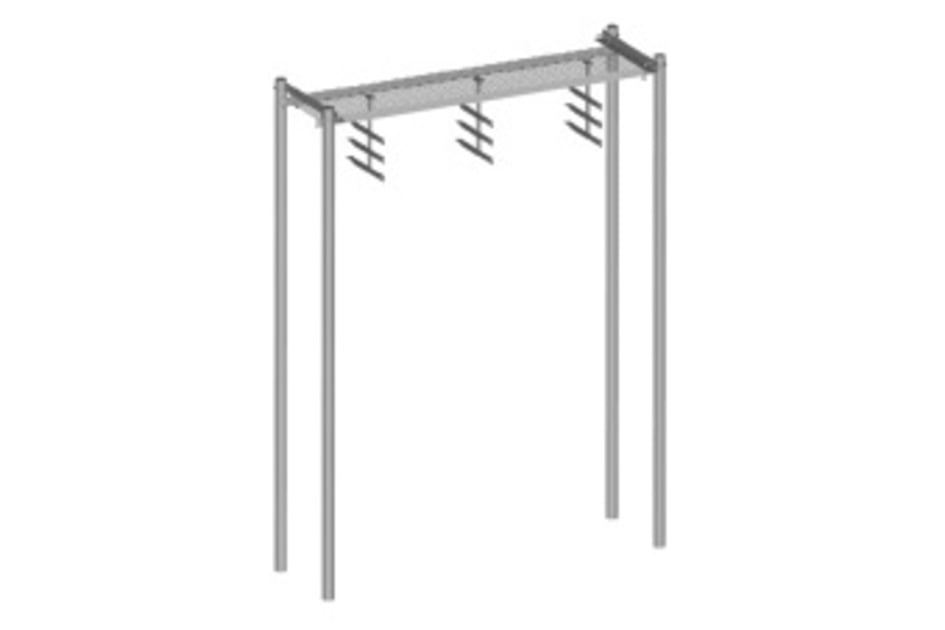

WB-K410-B15

Safety Grated Waveguide Bridge Kit, 24 in x 10 ft, with four 15 ft 4 in direct burial posts

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Product Type Waveguide bridge kit

General Specifications

Application Direct burial
Cable Runs, quantity 24
Pipe, quantity 4

Dimensions

Height 4572 mm | 180 in
Width 609.6 mm | 24 in
Length 3048 mm | 120 in
Pipe Length 4663.44 mm | 183.6 in

Outline Drawing

Click on image to enlarge.

Material Specifications

Material Type Hot dip galvanized steel

Packaging and Weights

Included Caps | Channel | Hardware | Posts | Support brackets | Trapeze
Packaging quantity 1
Weight, net 270.4 kg | 596.129 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted
