PROPEL-CABLED-MODULES

Base Product
  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

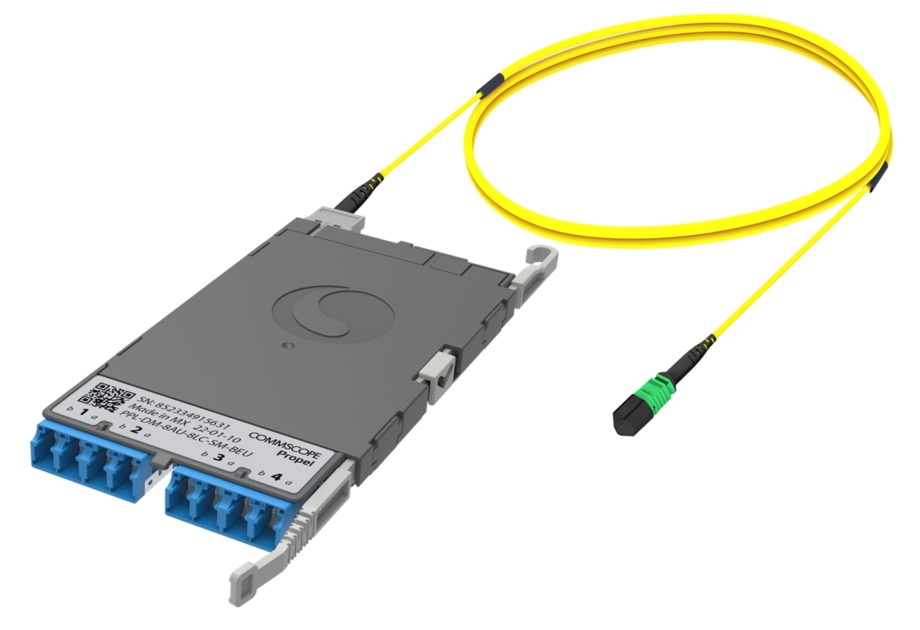

Pre-terminated Propel Cabled Modules available in all module sizes and fiber counts up to 288 fibers

Configure Product Variants
Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants

Configure and display product variants of PROPEL-CABLED-MODULES by selecting options

Loading...
Features and Benefits
Propel Cabled Modules provide a pre-terminated solution for simplified and efficient installation. They are available in all of the Propel module sizes on End A and End B can be another Propel module, MPO or stub.

Cable fiber counts range from 8 fibers – 288 fibers and cable lengths from 1 meter – 400 meters. Short cable lengths within rack can use patch cord cable for easy routing within the rack and longer lengths use ruggedized trunk cable.
  • Pre-cabled modules on End A reduces signal loss
  • Pre-cabled modules can be installed from rear of panel
  • Serialized QR code provides easy access to factory optical test results

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio SYSTIMAX®
Product Type Fiber cabled module
Product Brand Propel
Product Series PPL

General Specifications

Interface, front LC/UPC | SN/UPC
Interface, rear LC/UPC | MPO | SN/UPC | Stub

Optical Specifications

Fiber Mode Multimode | Singlemode
Fiber Type OM4 | OM5 | OS2

Environmental Specifications

Qualification Standards IEC 61753-1 | TIA-568.3-D
Safety Standard c-UL-us

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio SYSTIMAX®
Product Type Fiber cabled module
Product Brand Propel
Product Series PPL

General Specifications

Interface, front LC/UPC | SN/UPC
Interface, rear LC/UPC | MPO | SN/UPC | Stub

Optical Specifications

Fiber Mode Multimode | Singlemode
Fiber Type OM4 | OM5 | OS2

Environmental Specifications

Qualification Standards IEC 61753-1 | TIA-568.3-D
Safety Standard c-UL-us
