760239073 | UDS-6U-WH-LA-B
Base Product: UDS-PANELS
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

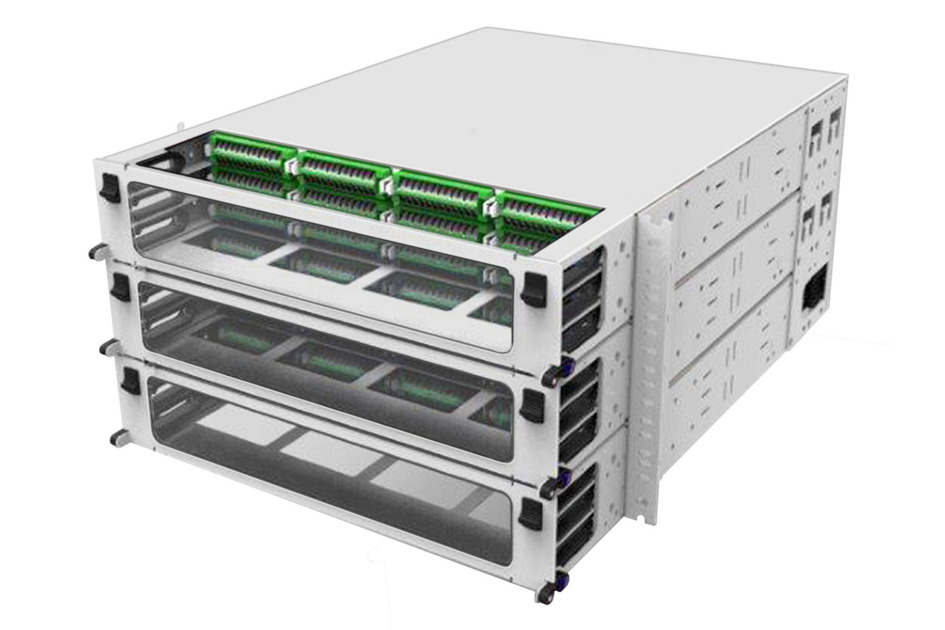

UDS 6RU splice panel, 432 duplex LC/APC ports, Enhanced Method B
Specifications
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Fiber patch/splice panel |
| Product Series | UDS |
General Specifications
| Application | Preloaded with 36 UDS modules |
| Color | White |
| Intelligence Type | Not iPatch® ready |
| Interface, front | LC/APC |
| Pigtail Assembly Type | 12-fiber, ribbon |
| Pigtails Included, quantity | 36 |
| Rack Type | EIA 19 in |
| Rack Units | 6 |
| Shelf Movement | Sliding |
| Splice Trays Included, quantity | 12 |
| Total Ports, quantity | 432 |
Dimensions
| Height | 266.7 mm | 10.5 in |
| Width | 444.5 mm | 17.5 in |
| Depth | 609.6 mm | 24 in |
Optical Specifications
| Insertion Loss, maximum | 0.4 dB |
Environmental Specifications
| Safety Standard | cUL US 1863 |
Packaging and Weights
| Packaging quantity | 1 |
| Weight, net | 20.412 kg | 45 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
