FPS-FMTSP-EJJ01
- Available in:
- North America

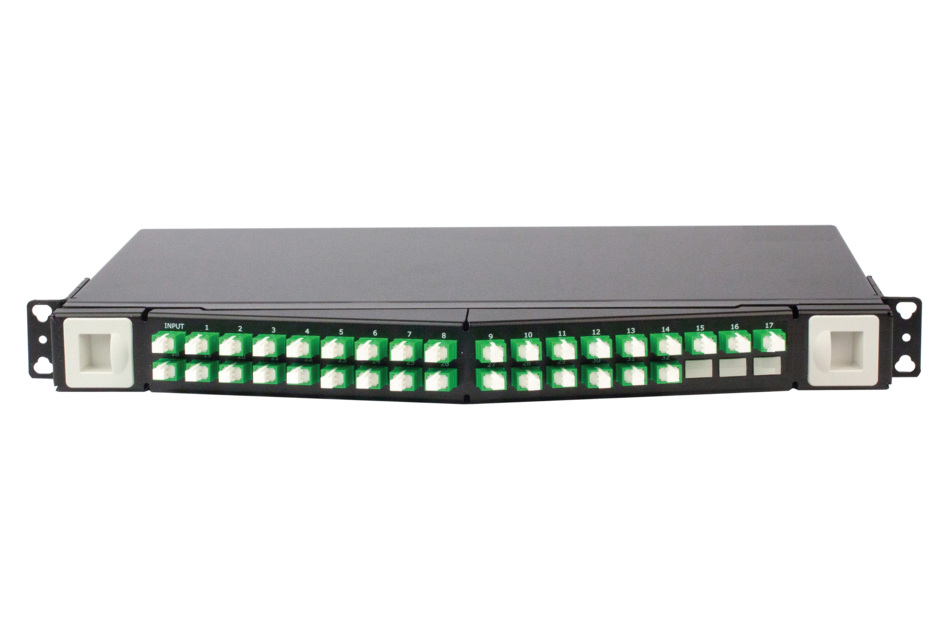

FMT Fiber Optic Splitter Patch Panel, 1U, 19 in, 2 x 32 splitter, SC/APC splitter and output connect., 1 splitter
Specifications
Product Classification
| Regional Availability | North America |
| Portfolio | CommScope® |
| Product Type | Splitter patch panel |
| Product Series | FMT |
General Specifications
| Device Type | Patch panel |
| Functionality | Splitting |
| Access | Front |
| Circuits, quantity | 1 |
| Distribution Type | 2 x 32 splitter |
| Interface, front | SC/APC |
| Split Ratio | Symmetrical |
| Splitter, quantity | 1 |
Dimensions
| Height | 71.88 mm | 2.83 in |
| Width | 17.27 mm | 0.68 in |
| Depth | 177.8 mm | 7 in |
Optical Specifications
| Directivity, minimum | 60 dB |
| Polarization Dependent Loss, maximum | 0.4 dB |
| Uniformity, maximum | 2 dB |
| Wavelength Range | 1260–1635 nm |
| Insertion Loss, Splitter, maximum | 17.4 dB |
| Insertion Loss, Splitter, typical | 16.2 dB |
| Return Loss, Splitter, minimum | 55 dB |
Packaging and Weights
| Packaging quantity | 1 |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant/Exempted |
CHINA-ROHS
|
Above maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant/Exempted |
Product Classification
| Regional Availability | North America |
| Portfolio | CommScope® |
| Product Type | Splitter patch panel |
| Product Series | FMT |
General Specifications
| Device Type | Patch panel |
| Functionality | Splitting |
| Access | Front |
| Circuits, quantity | 1 |
| Distribution Type | 2 x 32 splitter |
| Interface, front | SC/APC |
| Split Ratio | Symmetrical |
| Splitter, quantity | 1 |
Dimensions
| Height | 71.88 mm | 2.83 in |
| Width | 17.27 mm | 0.68 in |
| Depth | 177.8 mm | 7 in |
Optical Specifications
| Directivity, minimum | 60 dB |
| Polarization Dependent Loss, maximum | 0.4 dB |
| Uniformity, maximum | 2 dB |
| Wavelength Range | 1260–1635 nm |
| Insertion Loss, Splitter, maximum | 17.4 dB |
| Insertion Loss, Splitter, typical | 16.2 dB |
| Return Loss, Splitter, minimum | 55 dB |
Packaging and Weights
| Packaging quantity | 1 |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant/Exempted |
|
CHINA-ROHS
|
Above maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant/Exempted |
