This product was discontinued on: March 31, 2023

For other alternatives, please contact us for more information.

0 Replacement products available

LDXX-6516DS-VTM

4-port sector antenna, 4x 790–960 MHz, 65° HPBW, RET compatible

Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • Engineered to provide wideband capability to support “Digital Dividend” band applications, future ready
  • Same physical size as existing 800/900 MHz antennas for easy site zoning
  • Proven core design technology, with over 1,000,000 similar antennas deployed

General Specifications

Antenna Type Sector
Band Single band
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Radiator Material Aluminum

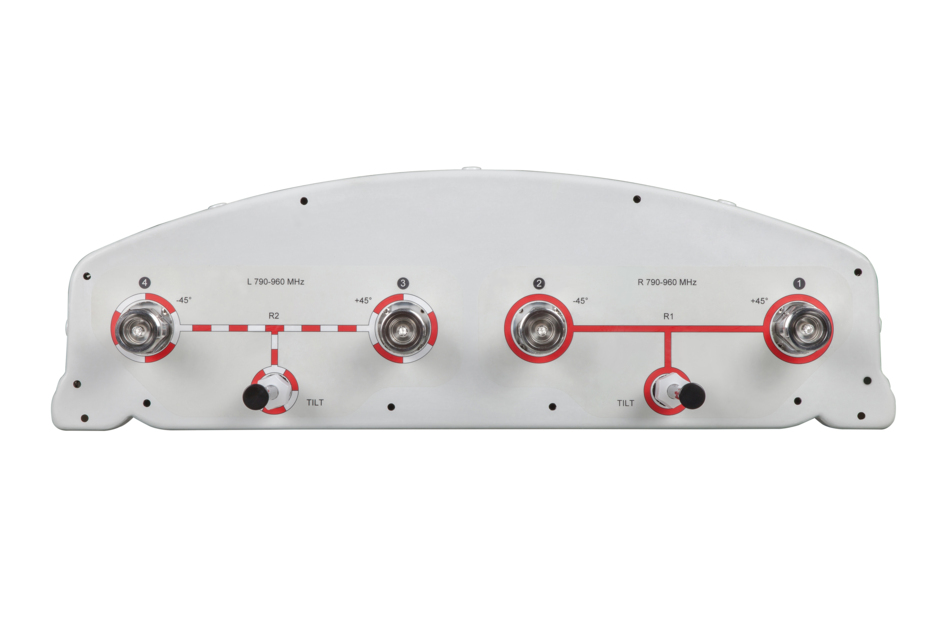

RF Connector Interface 7-16 DIN Female
RF Connector Location Bottom
RF Connector Quantity, high band 0
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 4
RF Connector Quantity, total 4

Dimensions

Width 549 mm | 21.614 in
Depth 165 mm | 6.496 in
Length 2567 mm | 101.063 in
Net Weight, without mounting kit 32.1 kg | 70.768 lb

Array Layout

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 790 – 960 MHz
Polarization ±45°

Electrical Specifications

Frequency Band, MHz 790–862 824–894 870–960
Gain, dBi 17.5 17.9 17.5
Beamwidth, Horizontal, degrees 70 67 64
Beamwidth, Vertical, degrees 7.9 7.5 7.1
Beam Tilt, degrees 0–8 0–8 0–8
USLS (First Lobe), dB 17 17 17
Front-to-Back Ratio at 180°, dB 30 30 30
CPR at Boresight, dB 24 24 25
CPR at Sector, dB 16 16 12
Isolation, Cross Polarization, dB 30 30 30
Isolation, Cross Polarization, port to port, dB 30 30 30
VSWR | Return loss, dB 1.4 | 15.6 1.4 | 15.6 1.4 | 15.6
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150
Input Power per Port, maximum, watts 350 350 350

Mechanical Specifications

Wind Loading @ Velocity, frontal 1,436.0 N @ 150 km/h (322.8 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 298.0 N @ 150 km/h (67.0 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 2,210.0 N @ 150 km/h (496.8 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 659 mm | 25.945 in
Depth, packed 275 mm | 10.827 in
Length, packed 2883 mm | 113.504 in
Weight, gross 53.1 kg | 117.065 lb

Regulatory Compliance/Certifications

Agency Classification
CE Compliant with the relevant CE product directives
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
