RRZHHTT-65A-R6N39

14-port sector antenna, 4x 694–960, 2x 1427–2690, 4x 1695-2180 and 4x 2490-2690 MHz, 65° HPBW, 6x RET

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • All Internal RET actuators are connected in “Cascaded SRET” configuration
  • Supports re-configurable antenna sharing capability enabling control of the internal RET system using up to two separate RET compatible OEM radios
  • Superior windloading capability by using 395mm width slim radome

General Specifications

Antenna Type Sector
Band Multiband
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 0
RF Connector Quantity, mid band 10
RF Connector Quantity, low band 4
RF Connector Quantity, total 14

Remote Electrical Tilt (RET) Information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal RET Low band (2) | Mid band (4)
Power Consumption, active state, maximum 8 W
Power Consumption, idle state, maximum 1 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 395 mm | 15.551 in
Depth 228 mm | 8.976 in
Length 1500 mm | 59.055 in
Net Weight, antenna only 27.3 kg | 60.186 lb

Array Layout

Click on image to enlarge.

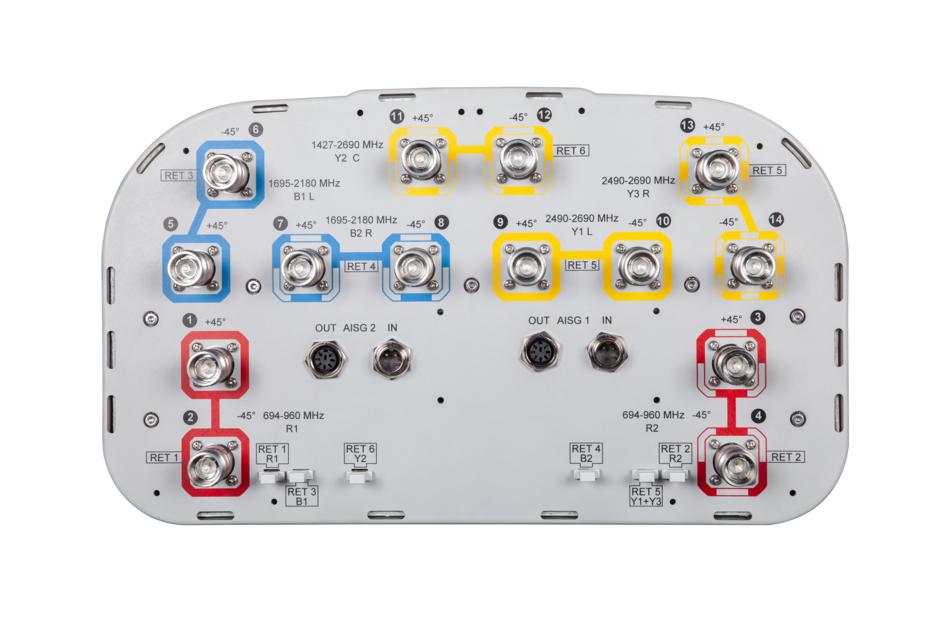

Port Configuration

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1427 – 2690 MHz | 1695 – 2180 MHz | 2490 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 900 W @ 50 °C

Electrical Specifications

R1,R2 R1,R2 R1,R2 Y2 Y2 Y2 Y2 Y2 B1,B2 B1,B2 Y1,Y3
Frequency Band, MHz 698–806 790–896 890–960 1427–1518 1695–1990 1920–2300 2300–2500 2490–2690 1695–1990 1920–2180 2490–2690
RF Port 1-4 1-4 1-4 11,12 11,12 11,12 11,12 11,12 5-8 5-8 9,10,13,14
Gain at Mid Tilt, dBi 12.1 12.9 13.3 14.8 15.9 17.1 18.1 18.0 15.8 16.6 17.5
Beamwidth, Horizontal, degrees 63 56 56 59 60 54 49 51 69 65 55
Beamwidth, Vertical, degrees 16.9 15 13.9 8.4 7.3 6.5 5.6 5.2 6.7 6.2 5
Beam Tilt, degrees 3–16 3–16 3–16 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 17 19 19 17 16 16 18 19 16 17 19
Front-to-Back Ratio at 180°, dB 26 28 29 33 29 31 35 27 29 30 27
Front-to-Back Total Power at 180° ± 30°, dB 18 20 21 26 23 24 28 28 23 24 22
CPR at Boresight, dB 23 23 23 14 16 16 23 16 18 20 22
CPR at Sector, dB 8 6 8 8 5 4 2 -1 4 3 1
Isolation, Cross Polarization, dB 25 25 25 26 26 26 26 26 26 26 26
Isolation, Inter-band, dB 25 25 25 27 27 27 27 27 27 27 27
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -150 -150 -150 -150 -150
Input Power per Port at 50°C, maximum, watts 300 300 300 250 250 250 200 150 250 250 150

Mechanical Specifications

Wind Loading @ Velocity, frontal 297.0 N @ 150 km/h (66.8 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 253.0 N @ 150 km/h (56.9 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 612.0 N @ 150 km/h (137.6 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 307.0 N @ 150 km/h (69.0 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 505 mm | 19.882 in
Depth, packed 386 mm | 15.197 in
Length, packed 1643 mm | 64.685 in
Weight, gross 42.3 kg | 93.255 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant, Compliant/Exempted
