Specifications

Finish making your selections or clear them to view relevant specifications.

Features and Benefits

Integrated Internal Remote Electrical Tilt (RET), with independent control of electrical tilt with manual override on all arrays
All Internal RET actuators are connected in “Cascaded SRET” configuration

Specifications

General Specifications

Antenna Type	Sector
Band	Multiband
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage \| Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material	Fiberglass, UV resistant
Radiator Material	Low loss circuit board
Reflector Material	Aluminum
RF Connector Interface	7-16 DIN Female
RF Connector Location	Bottom
RF Connector Quantity, high band	8
RF Connector Quantity, mid band	0
RF Connector Quantity, low band	2
RF Connector Quantity, total	10

Remote Electrical Tilt (RET) Information

RET Interface	8-pin DIN Female \| 8-pin DIN Male
RET Interface, quantity	1 female \| 1 male
Input Voltage	10–30 Vdc
Internal RET	High band (4) \| Low band (1)
Power Consumption, idle state, maximum	2 W
Power Consumption, normal conditions, maximum	13 W
Protocol	3GPP/AISG 2.0 (Single RET)

Dimensions

Width	350 mm \| 13.78 in
Depth	208 mm \| 8.189 in
Length	2763.5 mm \| 108.799 in
Net Weight, without mounting kit	46.1 kg \| 101.633 lb

Array Layout

Click on image to enlarge.

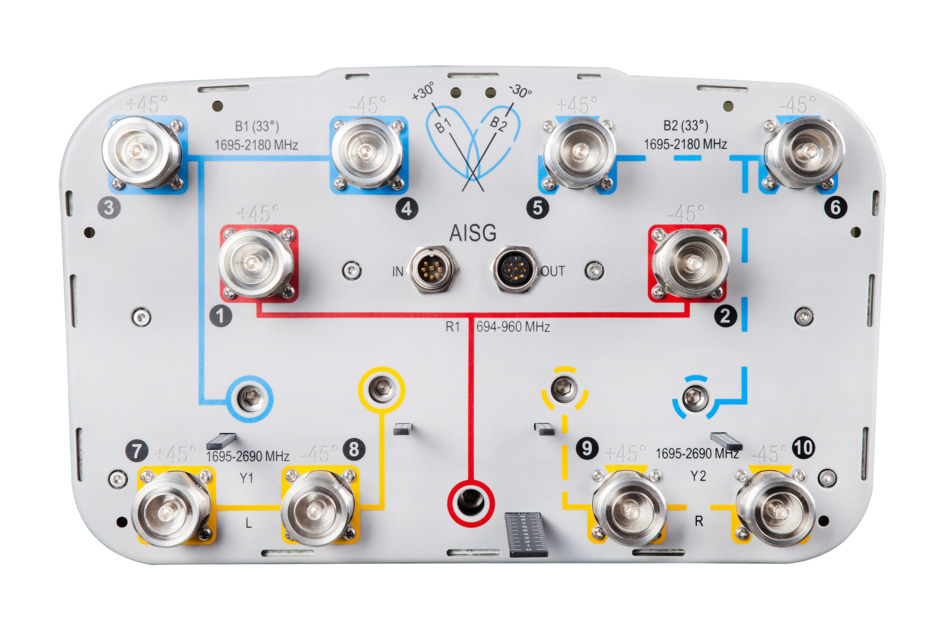

Port Configuration

Click on image to enlarge.

Electrical Specifications

Impedance	50 ohm
Operating Frequency Band	694 – 960 MHz \| 1695 – 2690 MHz \| 1695 – 2180 MHz
Polarization	±45°

Electrical Specifications

	LB	LB	LB	HB	HB	HB	HB-Dual-Beam2	HB-Dual-Beam2
Frequency Band, MHz	694–790	790–890	890–960	1695–1920	1920–2180	2300–2690	1695–1920	1920–2180
Gain, dBi	16.2	16.5	16.7	17.5	18.2	18.8	17.2	18.8
Beam Centers, Horizontal, degrees							±31	±28
Beamwidth, Horizontal, degrees	69	68	68	62	62	61	36	32
Beamwidth, Vertical, degrees	10.1	8.9	8.3	7.5	6.7	5.5	7.7	6.9
Beam Tilt, degrees	0–10	0–10	0–10	0–10	0–10	0–10	0–10	0–10
USLS (First Lobe), dB	18	18	18	18	18	18	18	18
Null Fill, dB	-22	-22	-22	-22	-22	-22	-22	-22
Front-to-Back Ratio at 180°, dB	31	33	34	35	38	38	28	33
Front-to-Back Total Power at 180° ± 30°, dB	27	27	27	27	27	29	24	27
Isolation, Cross Polarization, dB	28	28	28	30	30	30	25	25
Isolation, Beam to Beam, dB							18	18
VSWR \| Return loss, dB	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.43 \| 15.0	1.43 \| 15.0
PIM, 3rd Order, 2 x 20 W, dBc	-150	-150	-150	-150	-150	-150	-150	-150
Input Power per Port, maximum, watts	300	300	300	250	250	250	250	250

Mechanical Specifications

Wind Loading @ Velocity, frontal	493.0 N @ 150 km/h (110.8 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	423.0 N @ 150 km/h (95.1 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum	1,044.0 N @ 150 km/h (234.7 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	523.0 N @ 150 km/h (117.6 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h (150 mph)

Packaging and Weights

Width, packed	436 mm \| 17.165 in
Depth, packed	320 mm \| 12.598 in
Length, packed	2985 mm \| 117.52 in
Weight, gross	68.5 kg \| 151.016 lb

Regulatory Compliance/Certifications

Agency	Classification
CE	Compliant with the relevant CE product directives
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
UK-ROHS	Compliant
