CMAX-DMF4-43-WI53

Base Product: DIRECTIONAL-ANTENNAS

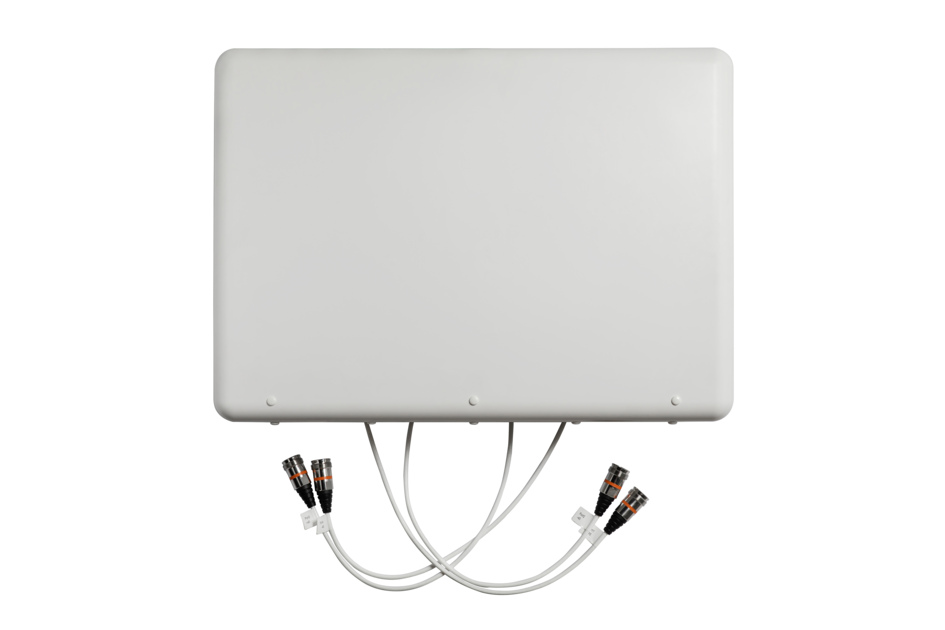

Low PIM Directional 4X4 MIMO Outdoor Antenna, 698–960 MHz, 1695–2700 MHz and 3300-4200MHz

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Product Type Indoor/outdoor antenna

General Specifications

Application Indoor/Outdoor
Antenna Type Directional
Antenna Array Characteristic MIMO 4x4
Polarization ±45°
Color White (RAL 9016)
Number of Ports 4
Pigtail Cable 670-141SXE, plenum rated
Radome Material ASA+PC, UV stabilized
RF Connector Interface 4.3-10 Female

Dimensions

Width 332 mm | 13.071 in
Depth 100 mm | 3.937 in
Length 458 mm | 18.032 in
Pigtail Length 450 mm | 17.717 in

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 698 – 960 MHz | 1695 – 2700 MHz | 3300 – 4200 MHz
Electrical Note Values typical, unless otherwise stated

Electrical Specifications

Frequency Band, MHz 698–800 800–960 1695–2200 2200–2700 3300–4200
Gain, dBi 7.0 7.5 7.5 7.8 7.7
Beamwidth, Horizontal, degrees 90 80 71 67 68
Beamwidth, Vertical, degrees 70 69 72 73 69
Front-to-Back Ratio, Copolarization 180° ± 30°, dB 15 15 15 15 15
Isolation, Cross Polarization, dB 18 20 25 25 25
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153
Input Power per Port, maximum, watts 100 100 100 100 100

Return Loss/VSWR

Frequency Band VSWR, Maximum Return Loss, Maximum (dB) VSWR, Mean Return Loss, Mean (dB)
698–800 MHz 1.697 11.75 1.499 14.0
800–960 MHz 1.697 11.75 1.499 14.0
1695–2200 MHz 1.697 11.75 1.499 14.0
2200–2700 MHz 1.697 11.75 1.499 14.0
3300–4200 MHz 1.697 11.75 1.499 14.0

Mechanical Specifications

Wind Loading @ Velocity, maximum 473.0 N @ 241 km/h (106.3 lbf @ 150 mph)

Environmental Specifications

Operating Temperature -40 °C to +60 °C (-40 °F to +140 °F)
Relative Humidity Up to 100%
Ingress Protection Test Method IEC 60529:2001, IP65

Packaging and Weights

Width, packed 390 mm | 15.354 in
Depth, packed 215 mm | 8.465 in
Length, packed 665 mm | 26.181 in
Included Mounting bracket
Net Weight, with mounting kit 4.3 kg | 9.480 lb
Packaging quantity 1
Weight, gross 6.2 kg | 13.669 lb

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance
