HCA-H01K

Base Product: HCA

  • Available in:
  • Asia
  • EMEA
  • Latin America
  • North America

Fiber Optic Drop Cable Assembly, PRODIGY™w/Fullsize converter to stub, 5mm LSZH Round Cable

Configure Product Variants
Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Variants

Configure and display product variants of HCA-H01K by selecting options

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Part Number Cable Assembly Length
No configured items found.
Features and Benefits
  • Cable assembly with the Prodigy™ small form hardened connector
  • Compact and small footprint, space-saving design for high-density environments
  • Compatible with multiple hardened connectors

Product Classification

Regional Availability Asia | EMEA | Latin America | North America
Product Type Fiber drop cable assembly
Product Brand PRODIGY™
Product Series HCA

General Specifications

Cable Type Dielectric - Round
Connector A, quantity 1
Color, boot A Black
Color, connector A Black
Interface, Connector A Prodigy® with full size converter installed
Interface, Connector B Unterminated
Jacket Color Black
Total Fibers, quantity 1

Dimensions

Cable Assembly Length Range (m) 3 – 609
Cable Outer Diameter 5.0 mm (0.20 in)

Ordering Tree

Click on image to enlarge.

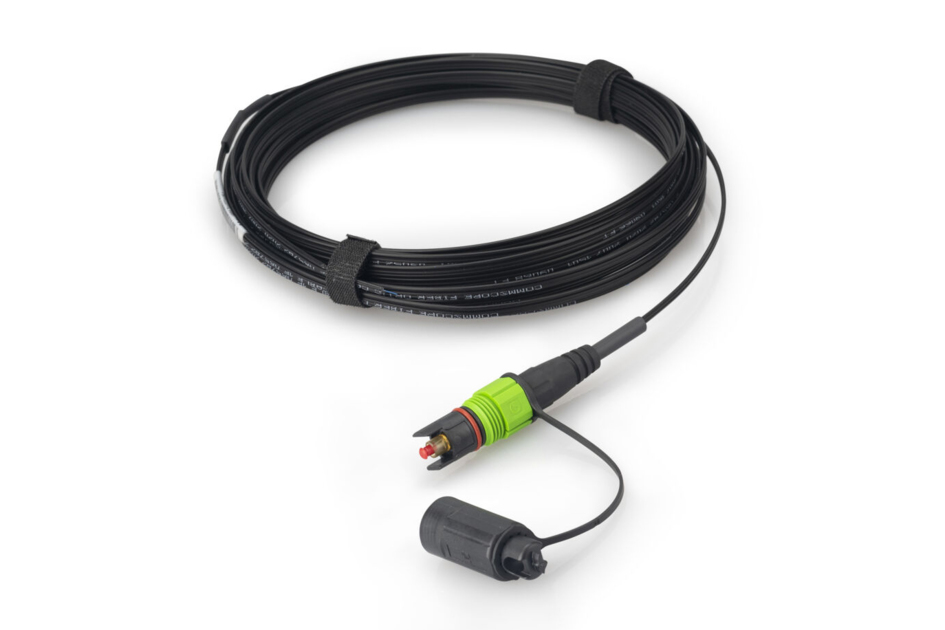

Representative Image

Click on image to enlarge.

Mechanical Specifications

Minimum Bend Radius, loaded 75 mm | 2.953 in
Tensile Load, long term, maximum 300 N | 67.443 lbf
Tensile Load, short term, maximum 1200 N | 269.771 lbf
Cable Crush Resistance, maximum 10 N/mm | 57.101 lb/in
Dust Cap Pulling Force, minimum 445 N | 100.040 lbf
Mating Durability, maximum 0.2 dB @ 500 cycles

Optical Specifications

Fiber Mode Singlemode
Fiber Type G.657.A2, TeraSPEED®
Insertion Loss, maximum, connector A 0.3 dB
Insertion Loss, typical 0.15 dB
Return Loss, minimum, connector A 65 dB

Environmental Specifications

Installation temperature 0 °C to +60 °C (-32 °F to +140 °F)
Operating Temperature -25 °C to +70 °C (-13 °F to +158 °F)
Storage Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Environmental Space Outdoor
Jacket UV Resistance UV stabilized
Qualification Standards IEC 61753-1

Packaging and Weights

Cable weight 30 kg/km | 20.159 lb/kft
Packaging quantity 1

Product Classification

Regional Availability Asia | EMEA | Latin America | North America
Product Type Fiber drop cable assembly
Product Brand PRODIGY™
Product Series HCA

General Specifications

Cable Type Dielectric - Round
Connector A, quantity 1
Color, boot A Black
Color, connector A Black
Interface, Connector A Prodigy® with full size converter installed
Interface, Connector B Unterminated
Jacket Color Black
Total Fibers, quantity 1

Dimensions

Cable Assembly Length Range (m) 3 – 609
Cable Outer Diameter 5.0 mm (0.20 in)

Mechanical Specifications

Minimum Bend Radius, loaded 75 mm | 2.953 in
Tensile Load, long term, maximum 300 N | 67.443 lbf
Tensile Load, short term, maximum 1200 N | 269.771 lbf
Cable Crush Resistance, maximum 10 N/mm | 57.101 lb/in
Dust Cap Pulling Force, minimum 445 N | 100.040 lbf
Mating Durability, maximum 0.2 dB @ 500 cycles

Optical Specifications

Fiber Mode Singlemode
Fiber Type G.657.A2, TeraSPEED®
Insertion Loss, maximum, connector A 0.3 dB
Insertion Loss, typical 0.15 dB
Return Loss, minimum, connector A 65 dB

Environmental Specifications

Installation temperature 0 °C to +60 °C (-32 °F to +140 °F)
Operating Temperature -25 °C to +70 °C (-13 °F to +158 °F)
Storage Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Environmental Space Outdoor
Jacket UV Resistance UV stabilized
Qualification Standards IEC 61753-1

Packaging and Weights

Cable weight 30 kg/km | 20.159 lb/kft
Packaging quantity 1
