FHD-TEST-CORD

Base Product

Available in:
Australia/New Zealand
EMEA
Latin America
North America

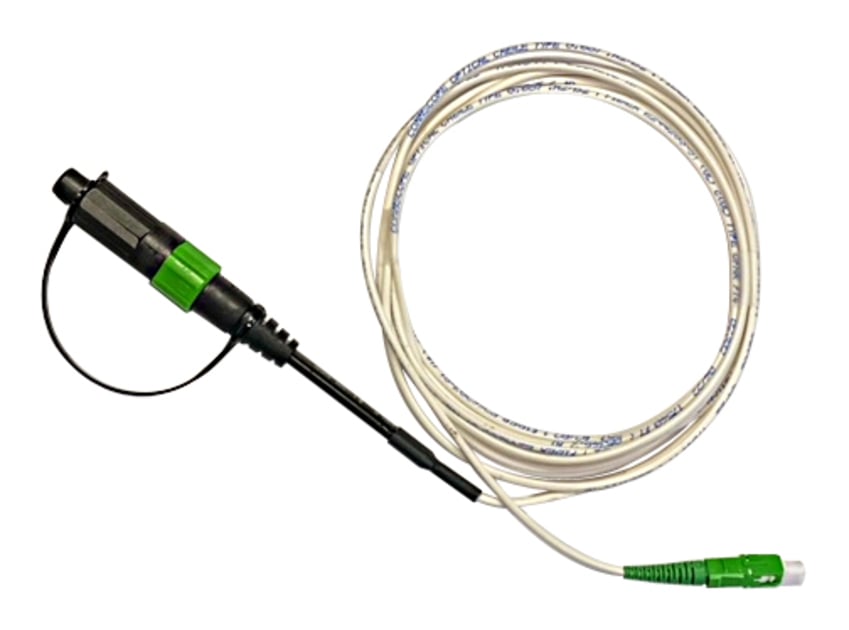

Fiber Optic Drop Test Lead, Singlemode with hardened connectivity, single fiber

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants Show All Clear

Configure and display product variants of FHD-TEST-CORD by selecting options

Specifications

Product Classification

Regional Availability	Australia/New Zealand \| EMEA \| Latin America \| North America
Product Type	Test patch cord, single fiber
Product Series	FHD

General Specifications

Connector A, quantity	1
Connector B, quantity	1
Interface, Connector A	Hardened full-size SC/APC \| Hardened mini-size DLX
Interface, Connector B	SC/APC \| SC/UPC
Jacket Color	Black
Pulling Grips, quantity	1
Total Fibers, quantity	1
Transmission Standards	IEC 61753-1 \| IEC 61754-4 \| IEC 61755

Dimensions

Height Over Jacket	4.4 mm \| 0.173 in
Width Over Jacket	7.4 mm \| 0.291 in

Ordering Tree

Click on image to enlarge.

Material Specifications

Jacket Material

Dielectric - Universal Flat

Mechanical Specifications

Minimum Bend Radius, loaded	100 mm \| 3.937 in
Minimum Bend Radius, unloaded	150 mm \| 5.906 in
Tensile Load, long term, maximum	450 N \| 101.164 lbf
Tensile Load, short term, maximum	1300 N \| 292.252 lbf
Cable Crush Resistance, maximum	44 N/mm \| 251.246 lb/in

Optical Specifications

Fiber Mode	Singlemode
Fiber Type	G.657.A2, TeraSPEED®
Insertion Loss, maximum, connector A	0.4 dB
Insertion Loss, maximum, connector B	0.35 dB
Return Loss, minimum, connector A	65 dB
Return Loss, minimum, connector B	65 dB

Environmental Specifications

Operating Temperature	-40 °C to +75 °C (-40 °F to +167 °F)
Storage Temperature	-40 °C to +75 °C (-40 °F to +167 °F)
Environmental Space	Outdoor, buried
Qualification Standards	NEMA type 6, 10 ft waterhead \| Telcordia GR-20 \| Telcordia GR-3120

Packaging and Weights

Cable weight	30 kg/km \| 20.159 lb/kft
Packaging quantity	1
