4112704/10 | 2227V WHRL RG6 QD 1000

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

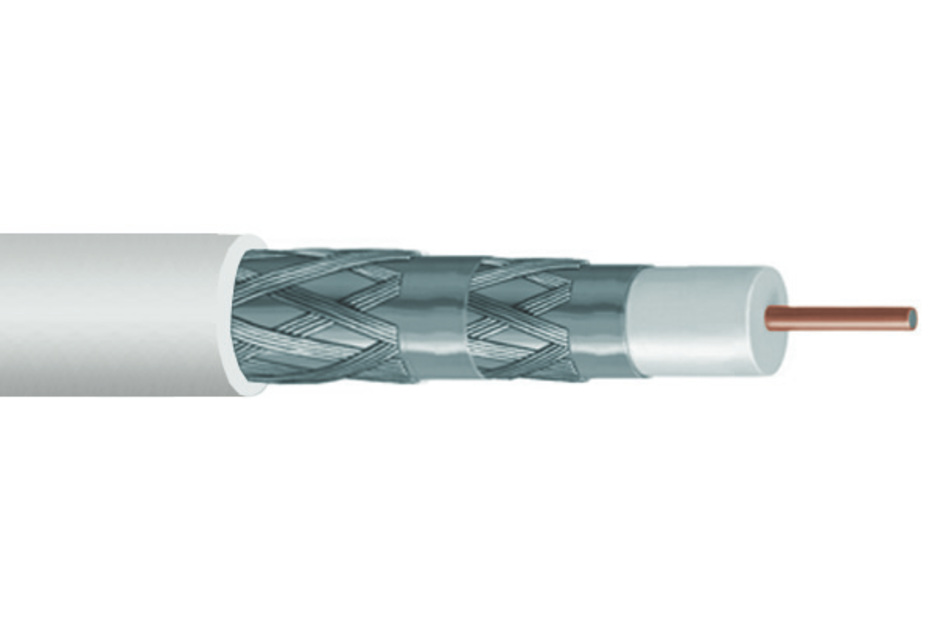

RG 6 Type Quad Shield Plenum Video Coaxial Cable, white jacket, 1000 ft (305 m) reel

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Coaxial video cable

General Specifications

Product Number 2227V
Cable Type Series 6
Center Conductor Type Solid
Construction Type Non-armored
Jacket Color White
Supported Application Video

Dimensions

Cable Length 304.8 m | 1000 ft
Diameter Over Center Conductor, specific 0.0403 in per 1 strand
Diameter Over Dielectric 4.318 mm | 0.17 in
Diameter Over Inner Shield (Braid) 5.131 mm | 0.202 in
Diameter Over Jacket, nominal 6.604 mm | 0.26 in
Diameter Over Jacket Tolerance ±0.006 in
Diameter Over Outer Shield (Braid) 5.74 mm | 0.226 in
Jacket Thickness 0.406 mm | 0.016 in
Jacket Thickness, minimum spot 0.33 mm | 0.013 in
Center Conductor Gauge 18 AWG
Inner Shield (Braid) Gauge 34 AWG
Outer Shield (Braid) Gauge 34 AWG

Electrical Specifications

Capacitance 50.853 pF/m | 15.5 pF/ft
Characteristic Impedance 75 ohm
Characteristic Impedance Tolerance ±3 ohm
Conductor dc Resistance 93.832 ohms/km | 28.6 ohms/kft
Dielectric Strength, conductor to shield 2000 Vdc
Jacket Spark Test Voltage 2500 Vac
Nominal Velocity of Propagation (NVP) 84 %
Shield dc Resistance 17.388 ohms/km | 5.3 ohms/kft
Structural Return Loss 15 dB @ 1000–3000 MHz | 20 dB @ 5–1000 MHz
Structural Return Loss Test Method 100% Swept Tested

Attenuation

Frequency Attenuation (dB/100 ft)
1.0 MHz 0.380
10.0 MHz 0.700
50.0 MHz 1.480
100.0 MHz 2.010
200.0 MHz 2.860
400.0 MHz 4.230
700.0 MHz 5.960
900.0 MHz 6.960
1000.0 MHz 7.450
1200.0 MHz 8.250
1450.0 MHz 9.340
1800.0 MHz 10.690
2200.0 MHz 11.540
2500.0 MHz 11.700
3000.0 MHz 13.070

Material Specifications

Center Conductor Material Copper-clad steel wire
Dielectric Material Foam FEP
Jacket Material PVC
Inner Shield (Braid) Coverage 60 %
Inner Shield (Braid) Material Aluminum
Inner Shield (Tape) Material Aluminum/Poly
Outer Shield (Braid) Coverage 40 %
Outer Shield (Braid) Material Aluminum
Outer Shield (Tape) Material Aluminum/Poly, non-bonded

Mechanical Specifications

Minimum Bend Radius, loaded, times 20 times
Minimum Bend Radius, unloaded, times 10 times

Environmental Specifications

Environmental Space Plenum
Temperature Rating, UL 75 °C | 167 °F
Flame Test Method CMP
Safety Standard ETL | cETL

Packaging and Weights

Cable weight 43.157 kg/km | 29 lb/kft
Packaging Type Reel

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Coaxial video cable

General Specifications

Product Number 2227V
Cable Type Series 6
Center Conductor Type Solid
Construction Type Non-armored
Jacket Color White
Supported Application Video

Dimensions

Cable Length 304.8 m | 1000 ft
Diameter Over Center Conductor, specific 0.0403 in per 1 strand
Diameter Over Dielectric 4.318 mm | 0.17 in
Diameter Over Inner Shield (Braid) 5.131 mm | 0.202 in
Diameter Over Jacket, nominal 6.604 mm | 0.26 in
Diameter Over Jacket Tolerance ±0.006 in
Diameter Over Outer Shield (Braid) 5.74 mm | 0.226 in
Jacket Thickness 0.406 mm | 0.016 in
Jacket Thickness, minimum spot 0.33 mm | 0.013 in
Center Conductor Gauge 18 AWG
Inner Shield (Braid) Gauge 34 AWG
Outer Shield (Braid) Gauge 34 AWG

Electrical Specifications

Capacitance 50.853 pF/m | 15.5 pF/ft
Characteristic Impedance 75 ohm
Characteristic Impedance Tolerance ±3 ohm
Conductor dc Resistance 93.832 ohms/km | 28.6 ohms/kft
Dielectric Strength, conductor to shield 2000 Vdc
Jacket Spark Test Voltage 2500 Vac
Nominal Velocity of Propagation (NVP) 84 %
Shield dc Resistance 17.388 ohms/km | 5.3 ohms/kft
Structural Return Loss 15 dB @ 1000–3000 MHz | 20 dB @ 5–1000 MHz
Structural Return Loss Test Method 100% Swept Tested

Attenuation

Frequency Attenuation (dB/100 ft)
1.0 MHz 0.380
10.0 MHz 0.700
50.0 MHz 1.480
100.0 MHz 2.010
200.0 MHz 2.860
400.0 MHz 4.230
700.0 MHz 5.960
900.0 MHz 6.960
1000.0 MHz 7.450
1200.0 MHz 8.250
1450.0 MHz 9.340
1800.0 MHz 10.690
2200.0 MHz 11.540
2500.0 MHz 11.700
3000.0 MHz 13.070

Material Specifications

Center Conductor Material Copper-clad steel wire
Dielectric Material Foam FEP
Jacket Material PVC
Inner Shield (Braid) Coverage 60 %
Inner Shield (Braid) Material Aluminum
Inner Shield (Tape) Material Aluminum/Poly
Outer Shield (Braid) Coverage 40 %
Outer Shield (Braid) Material Aluminum
Outer Shield (Tape) Material Aluminum/Poly, non-bonded

Mechanical Specifications

Minimum Bend Radius, loaded, times 20 times
Minimum Bend Radius, unloaded, times 10 times

Environmental Specifications

Environmental Space Plenum
Temperature Rating, UL 75 °C | 167 °F
Flame Test Method CMP
Safety Standard ETL | cETL

Packaging and Weights

Cable weight 43.157 kg/km | 29 lb/kft
Packaging Type Reel

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
