2120148-4

Base Product: O-LA

  • Available in:
  • India

Fiber Optic Outside Plant Cable, 48-core, ECSS (Electro Chrome Coated Steel) Armored, Loose-tube, Gel-filled, 9/125 µm, OS2, Singlemode, Black cable jacket

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • Designed for use in backbone cabling, campus site cabling, outdoor ducts or direct burial cabling applications
  • Designed with a gel filled loose tube construction to ensure protection against moisture ingress

Product Classification

Regional Availability India
Portfolio CommScope®
Product Type Fiber OSP cable
Product Series O-LA

General Specifications

Armor Type Corrugated steel
Cable Type Loose tube
Subunit Type Gel-filled
Filler, quantity 0
Jacket Color Black
Jacket Marking Meters
Strength Members Central fiber reinforced polymer (FRP) rod
Fibers per Subunit, quantity 8
Total Fiber Count 48

Dimensions

Cable Length 2000 m | 6561.68 ft
Diameter Over Jacket 15.5 mm | 0.61 in

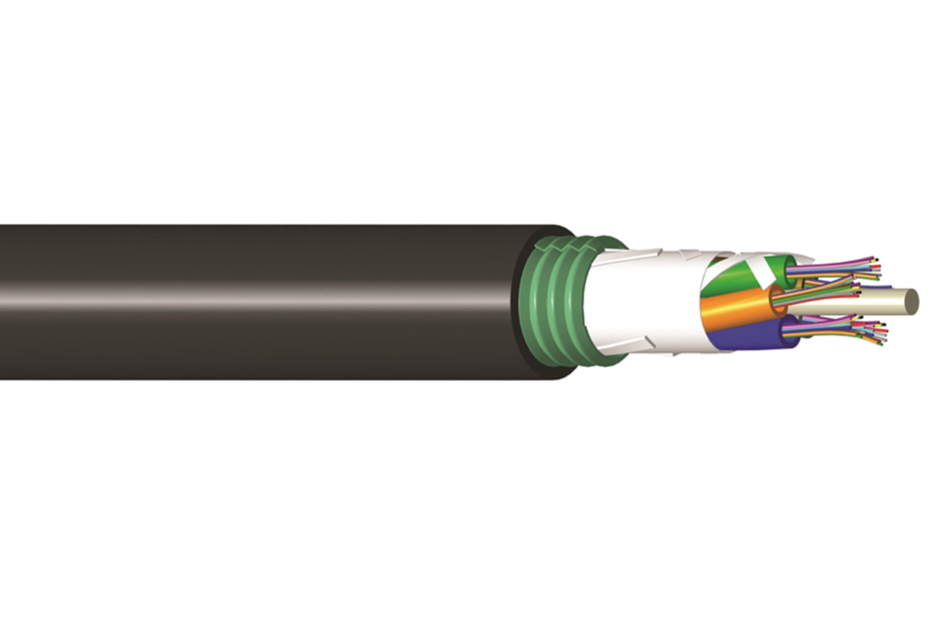

Representative Image

Click on image to enlarge.

Material Specifications

Jacket Material High density polyethylene (HDPE)

Mechanical Specifications

Minimum Bend Radius, loaded 310 mm | 12.205 in
Minimum Bend Radius, unloaded 248 mm | 9.764 in
Tensile Load, short term, maximum 4000 N | 899.236 lbf
Cable Crush Resistance, maximum 44 N/mm | 251.246 lb/in
Flex 25 cycles

Optical Specifications

Fiber Type OS2

Optical Specifications, Wavelength Specific

Attenuation, maximum 0.22 dB/km @ 1,550 nm | 0.34 dB/km @ 1,310 nm
Standards Compliance ANSI/TIA-568.E-3 | TIA-492CAAB (OS2)

Environmental Specifications

Operating Temperature -20 °C to +70 °C (-4 °F to +158 °F)
Cable Qualification Standards Telcordia GR-20-CORE

Packaging and Weights

Cable weight 215 kg/km | 144.473 lb/kft

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant

Product Classification

Regional Availability India
Portfolio CommScope®
Product Type Fiber OSP cable
Product Series O-LA

General Specifications

Armor Type Corrugated steel
Cable Type Loose tube
Subunit Type Gel-filled
Filler, quantity 0
Jacket Color Black
Jacket Marking Meters
Strength Members Central fiber reinforced polymer (FRP) rod
Fibers per Subunit, quantity 8
Total Fiber Count 48

Dimensions

Cable Length 2000 m | 6561.68 ft
Diameter Over Jacket 15.5 mm | 0.61 in

Material Specifications

Jacket Material High density polyethylene (HDPE)

Mechanical Specifications

Minimum Bend Radius, loaded 310 mm | 12.205 in
Minimum Bend Radius, unloaded 248 mm | 9.764 in
Tensile Load, short term, maximum 4000 N | 899.236 lbf
Cable Crush Resistance, maximum 44 N/mm | 251.246 lb/in
Flex 25 cycles

Optical Specifications

Fiber Type OS2

Optical Specifications, Wavelength Specific

Attenuation, maximum 0.22 dB/km @ 1,550 nm | 0.34 dB/km @ 1,310 nm
Standards Compliance ANSI/TIA-568.E-3 | TIA-492CAAB (OS2)

Environmental Specifications

Operating Temperature -20 °C to +70 °C (-4 °F to +158 °F)
Cable Qualification Standards Telcordia GR-20-CORE

Packaging and Weights

Cable weight 215 kg/km | 144.473 lb/kft
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
