57893-3

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America

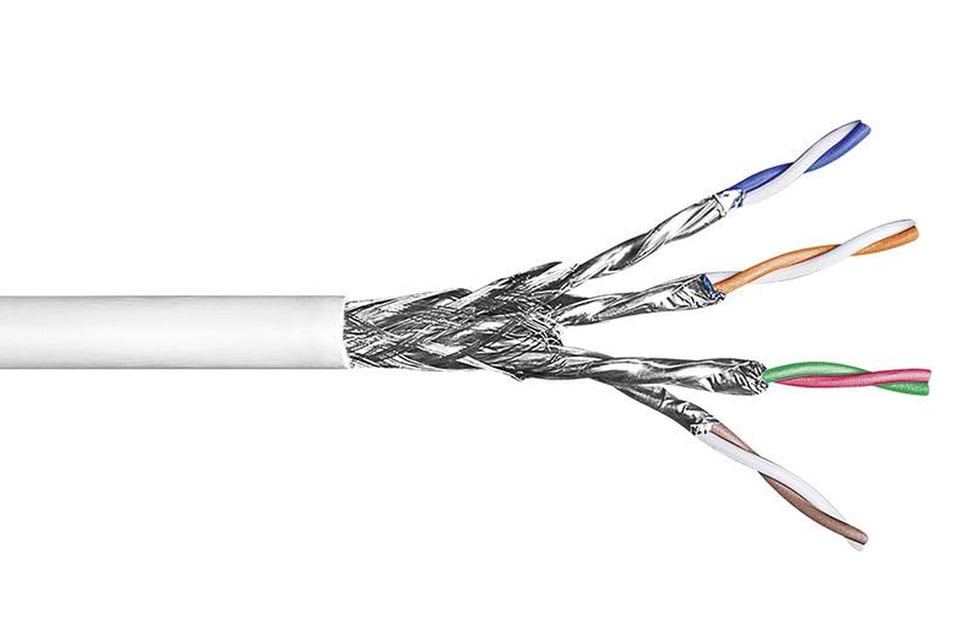

Copper Cable, category 7, 4 pair simplex, S/FTP, LSFRZH, XG, 23 AWG solid, 305 m, white

Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Specifications

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America
Portfolio NETCONNECT®
Product Type Twisted pair cable

General Specifications

ANSI/TIA Category 7
Cable Component Type Horizontal
Cable Type S/FTP (shielded)
Conductor Type, singles Solid
Conductors, quantity 8
Jacket Color White
Pairs, quantity 4
Transmission Standards ANSI/TIA-568.2-D | CENELEC EN 50288-4-1 | ISO/IEC 11801 Class F

Dimensions

Cable Length 304.800 m | 1000 ft
Diameter Over Conductor 1.501 mm | 0.0591 in
Diameter Over Jacket, nominal 7.29 mm | 0.287 in
Conductor Gauge, singles 23 AWG

Electrical Specifications

Characteristic Impedance 100 ohm
Characteristic Impedance Tolerance ±15 ohm
Coupling Attenuation Type I
dc Resistance, maximum 15 ohms/100 m | 4.572 ohms/100 ft
Delay Skew, maximum 7 ns
Nominal Velocity of Propagation (NVP) 80 %
Operating Voltage, maximum 80 V
Segregation Class d

Electrical Cable Performance

CS
CommScope
Std
Refers to the standard value listed under Transmission Standards in the Electrical Specifications above
Typ
Typical
IL
Insertion Loss (dB/100m)
NEXT
Near End Crosstalk (dB/100m)
ACR
Attenuation to Crosstalk Ratio (dB/100m))
PSNEXT
Power Sum Near End Crosstalk (db/100m)
PSACR
Power Sum Attenuation to Crosstalk Ratio (dB/100m)
ACRF
Attenuation to Crosstalk Ratio - Far End (dB/100m)
PSACRF
Insertion Loss (dB/100m)
RL
Return Loss (dB)
Frequency IL, TYP ACR, TYP PSNEXT, STD PSNEXT, TYP PSACRF, STD RL, STD RL, TYP
1.00 MHz 2.0 94.0 75.0 93.0 75.0 20.0 26.0
4.00 MHz 3.6 92.0 75.0 93.0 75.0 23.0 30.0
10.00 MHz 5.9 90.0 75.0 93.0 75.0 25.0 33.0
16.00 MHz 7.4 88.0 75.0 93.0 73.0 25.0 33.0
20.00 MHz 8.3 87.0 75.0 93.0 71.0 25.0 33.0
31.25 MHz 10.0 86.0 75.0 93.0 67.0 25.0 33.0
62.50 MHz 14.0 82.0 72.5 93.0 61.0 25.0 33.0
100.00 MHz 18.0 78.0 69.4 93.0 57.0 23.0 33.0
200.00 MHz 26.0 67.0 64.9 90.0 51.0 21.0 29.0
250.00 MHz 28.0 64.0 63.4 89.0 49.0 20.0 28.0
300.00 MHz 33.0 57.0 62.2 87.0 47.0 20.0 27.0
450.00 MHz 39.0 39.0 59.6 85.0 44.0 19.0 26.0
600.00 MHz 46.0 34.0 57.7 77.0 36.0 18.0 25.0
750.00 MHz 52.0 28.0 75.0 34.0 24.0
900.00 MHz 55.0 17.0 72.0 32.0 23.0
1000.00 MHz 57.0 15.0 70.0 30.0 20.0

Material Specifications

Conductor Material Bare copper
Insulation Material Polyolefin
Jacket Material Low Smoke Fire Retardant Zero Halogen (LSFRZH)
Shield (Tape) Material Aluminum/Polyester

Environmental Specifications

Installation temperature 0 °C to +50 °C (+32 °F to +122 °F)
Operating Temperature -20 °C to +60 °C (-4 °F to +140 °F)
EN50575 CPR Cable EuroClass Fire Performance Dca
EN50575 CPR Cable EuroClass Smoke Rating s2
EN50575 CPR Cable EuroClass Droplets Rating d1
EN50575 CPR Cable EuroClass Acidity Rating a1

Packaging and Weights

Packaging Type Reel

Regulatory Compliance/Certifications

Agency Classification
CENELEC EN 50575 compliant, Declaration of Performance (DoP) available
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
