760117945 | MFC-SCF-09-5X QWIK II™ SC

Base Product: QWIK II

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

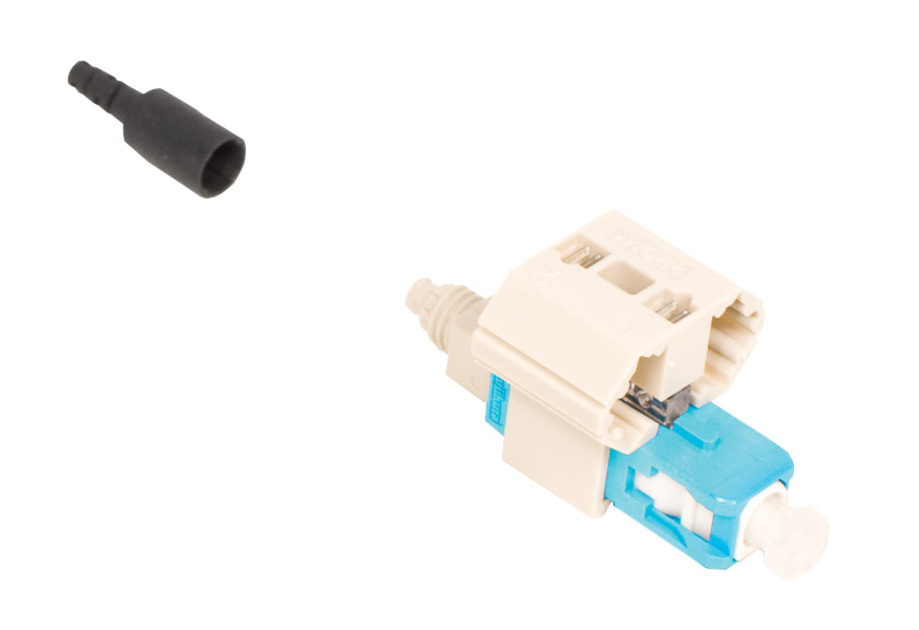

Field Installable SC Connector, OM3/4/5, Aqua, for 250/900um, single pack

Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Specifications

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Fiber connector
Product Brand LazrSPEED® | Qwik
Product Series Qwik II
Ordering Note Minimum order quantity (MOQ) is 125 pcs

General Specifications

Body Style BTW
Color, boot Black
Color, housing Aqua
Ferrule Geometry Factory polished
Interface SC
Interface Feature Field Installable | Mechanical splice

Dimensions

Length 50 mm | 1.969 in
Compatible Cable Diameter 0.25 mm | 0.010 in | 0.9 mm | 0.035 in

Material Specifications

Ferrule Material Zirconia

Mechanical Specifications

Cable Retention Strength, maximum 1.00 lb @ 0 °

Optical Specifications

Fiber Mode Multimode
Fiber Type OM3 | OM4 | OM5, LazrSPEED® wideband
Insertion Loss Change, mating 0.3 dB
Optical Components Standard ANSI/TIA-568. 3-D
Insertion Loss Change, temperature 0.3 dB
Insertion Loss, maximum 0.5 dB
Insertion Loss, typical 0.1 dB
Return Loss, minimum 20 dB

Environmental Specifications

Operating Temperature -40 °C to +75 °C (-40 °F to +167 °F)

Packaging and Weights

Packaging quantity 1

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Fiber connector
Product Brand LazrSPEED® | Qwik
Product Series Qwik II
Ordering Note Minimum order quantity (MOQ) is 125 pcs

General Specifications

Body Style BTW
Color, boot Black
Color, housing Aqua
Ferrule Geometry Factory polished
Interface SC
Interface Feature Field Installable | Mechanical splice

Dimensions

Length 50 mm | 1.969 in
Compatible Cable Diameter 0.25 mm | 0.010 in | 0.9 mm | 0.035 in

Material Specifications

Ferrule Material Zirconia

Mechanical Specifications

Cable Retention Strength, maximum 1.00 lb @ 0 °

Optical Specifications

Fiber Mode Multimode
Fiber Type OM3 | OM4 | OM5, LazrSPEED® wideband
Insertion Loss Change, mating 0.3 dB
Optical Components Standard ANSI/TIA-568. 3-D
Insertion Loss Change, temperature 0.3 dB
Insertion Loss, maximum 0.5 dB
Insertion Loss, typical 0.1 dB
Return Loss, minimum 20 dB

Environmental Specifications

Operating Temperature -40 °C to +75 °C (-40 °F to +167 °F)

Packaging and Weights

Packaging quantity 1

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
