CLICK-SERIES-HANGERS

Base Product

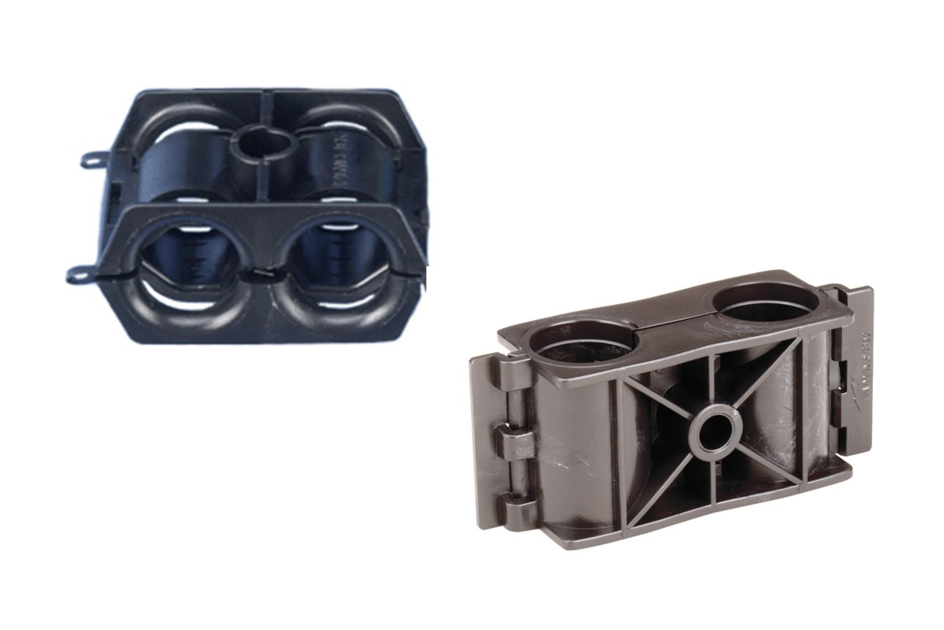

CLICK-Series Click-on Hangers

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants Show All Clear

Configure and display product variants of CLICK-SERIES-HANGERS by selecting options

Product	Product Type	Material Type	Hanger Type	Mounting	Compatible Cable Diameter Range	Nominal Size	Maximum Stack Height
1316MCLICK Miniature Click-on Hanger for 13–16 mm cable - Hardware Sold Separately Specifications	Hanger kit	Engineered plastic	Click-on hanger	M8 through hole	13–16 mm	1/2 in \| 3/8 in	3
68MCLICK Miniature Click-on Hanger for 6–8 mm cable Specifications	Hanger kit	Engineered plastic	Click-on hanger	M8 through hole	5.8–8.1 mm	1/4 in	3
912MCLICK Miniature Click-on Hanger for 9–12 mm cable Specifications	Hanger kit	Engineered plastic	Click-on hanger	M8 through hole	9–12 mm	1/4 in \| 3/8 in	3
L4CLICK Double Click-on Hanger for 1/2 in coaxial cable Specifications	Hanger kit	Engineered plastic	Click-on hanger	Mounting hole clearance for 3/8 \| 16 UNC or M10 threaded rod	15.2–16.3 mm	1/2 in	3
L5CLICKB Double Click-on Hanger for 7/8 in coaxial cable Specifications	Hanger kit	Engineered plastic	Click-on hanger	3/8 in (M10) drilled cable ladder	27.7–28.2 mm	7/8 in	3
L6CLICK Double Click-on Hanger for 1-1/4 in coaxial cable Specifications	Hanger kit	Engineered plastic	Click-on hanger	3/8 in (M10) drilled cable ladder	38.1–40.1 mm	1-1/4 in	3
L7CLICK Double Click-on Hanger for 1-5/8 in coaxial cable Specifications	Hanger kit	Engineered plastic	Click-on hanger	3/8 in (M10) drilled cable ladder	49–51.1 mm	1-5/8 in	3

Specifications

Product Classification

Product Type

Hanger kit

General Specifications

Color	Black
Hanger Type	Click-on hanger

Material Specifications

Material Type

Engineered plastic

Mechanical Specifications

Vibration Survival

≥4 hours at resonant frequency

Environmental Specifications

Operating Temperature	-40 °C to +85 °C (-40 °F to +185 °F)
Environmental Strength Capability	Double cable weight
UV Resistance, minimum with no degradation	≥100 hours exposure in accelerated UV life chamber
