ST-DBH60

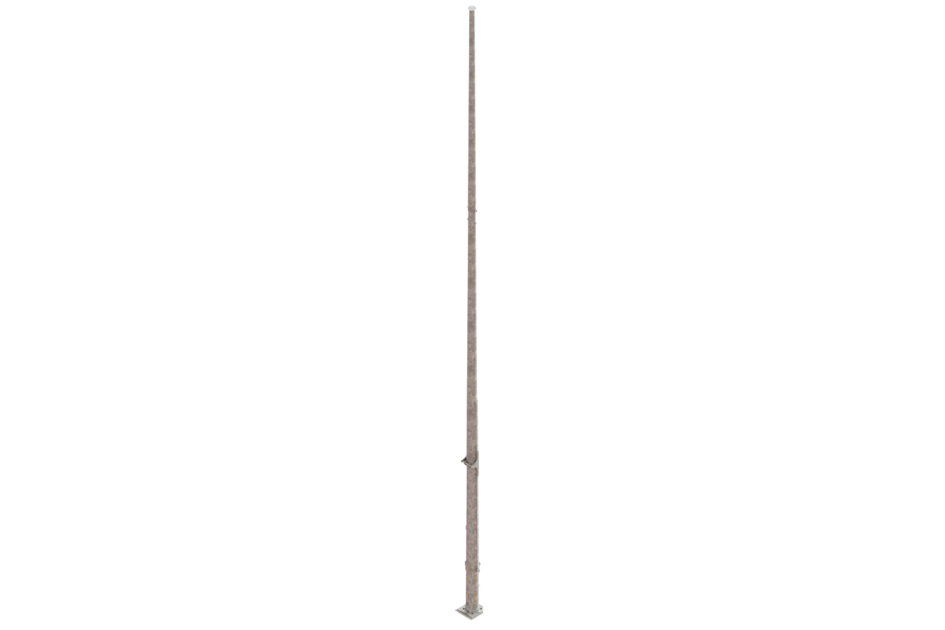

Double Hinged Pole, 60 ft

Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Features and Benefits
  • Hoist-operated, counterbalanced hinged design
  • No climbing necessary for equipment installation
  • Single person service
  • Rivet nut mounting
  • Secure locking
Specifications

Product Classification

Product Type Monopole

General Specifications

Application Positive train control/Centralized traffic control (PTC/CTC communications)
Equipment Load Rating 2 ft microwave reflector | Solar panel | Telecommunications unit
Foundation Base
Monopole Capability Type Heavy duty
Monopole Design Round conical
Optional Accessories Antenna mounts | Cabinet mounts | Hoist | Solar mounts

Dimensions

Height 18.288 m | 60 ft
Mounting Diameter, maximum 342.9 mm | 13.5 in
Mounting Diameter, minimum 200.66 mm | 7.9 in

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating Test Method TIA/EIA-222-G

Packaging and Weights

Included Ground tab | Hand holes | Lightning rod | Monopole | Safety-climb | Step pegs
Packaging quantity 1
Weight, net 910.8 kg | 2007.968 lb

Product Classification

Product Type Monopole

General Specifications

Application Positive train control/Centralized traffic control (PTC/CTC communications)
Equipment Load Rating 2 ft microwave reflector | Solar panel | Telecommunications unit
Foundation Base
Monopole Capability Type Heavy duty
Monopole Design Round conical
Optional Accessories Antenna mounts | Cabinet mounts | Hoist | Solar mounts

Dimensions

Height 18.288 m | 60 ft
Mounting Diameter, maximum 342.9 mm | 13.5 in
Mounting Diameter, minimum 200.66 mm | 7.9 in

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating Test Method TIA/EIA-222-G

Packaging and Weights

Included Ground tab | Hand holes | Lightning rod | Monopole | Safety-climb | Step pegs
Packaging quantity 1
Weight, net 910.8 kg | 2007.968 lb
