844667-000 | RDRK-C-65/20-700
- Available in:
- EMEA

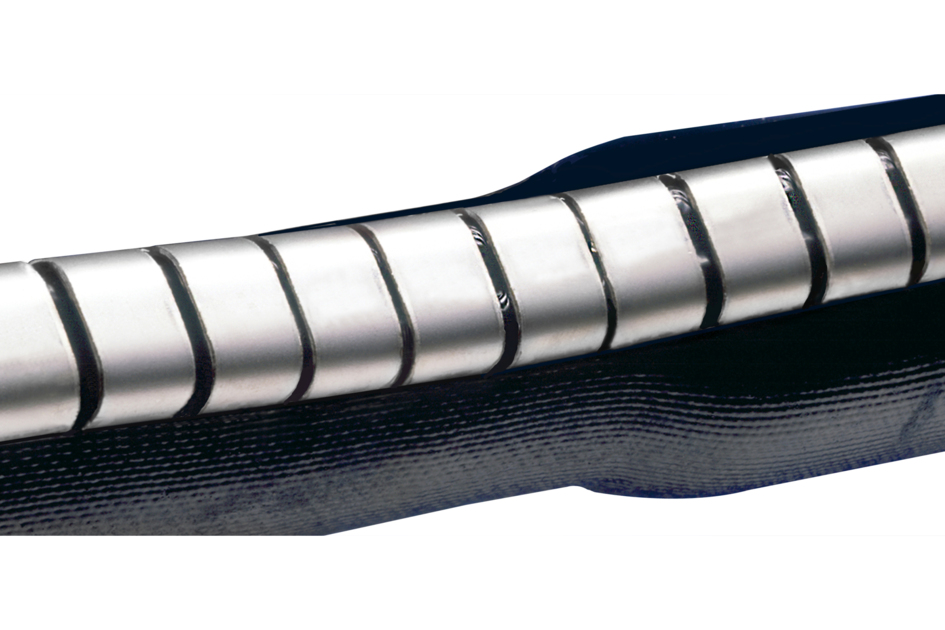

RDRK wraparound repair sleeve heat shrink kit, pressurized, for 20 to 65 mm cable diameter, 700 mm long
Specifications
Features and Benefits
- Designed for the repair of pressurized telephone cables and offers superior resistance to mechanical abuse
- During installation it is necessary to depressurize the cable and after installation the pressure may be restored
- For conductor repairs, the RayFort sleeve may be installed over the trouble-bundle using an insulation layer included in the kit
Specifications
Product Classification
| Regional Availability | EMEA |
| Product Type | Heat shrink repair sleeve |
| Product Series | RDRK |
General Specifications
| Color | Black |
| Sealant Type | Hotmelt adhesive |
Dimensions
| Length | 700 mm | 27.559 in |
| Single Cable Diameter, maximum | 65 mm | 2.559 in |
| Single Cable Diameter, minimum | 20 mm | 0.787 in |
Material Specifications
| Material Type | Fiber-reinforced multi-layer sealing sleeve |
Environmental Specifications
| Environmental Space | Buried | Ducted |
Packaging and Weights
| Packaging quantity | 1 |
| Packaging Type | Bag | Carton |
Product Classification
| Regional Availability | EMEA |
| Product Type | Heat shrink repair sleeve |
| Product Series | RDRK |
General Specifications
| Color | Black |
| Sealant Type | Hotmelt adhesive |
Dimensions
| Length | 700 mm | 27.559 in |
| Single Cable Diameter, maximum | 65 mm | 2.559 in |
| Single Cable Diameter, minimum | 20 mm | 0.787 in |
Material Specifications
| Material Type | Fiber-reinforced multi-layer sealing sleeve |
Environmental Specifications
| Environmental Space | Buried | Ducted |
Packaging and Weights
| Packaging quantity | 1 |
| Packaging Type | Bag | Carton |
