D80635-000 | GSIC-1/2-ANT-L-00-INT01
- Available in:
- EMEA

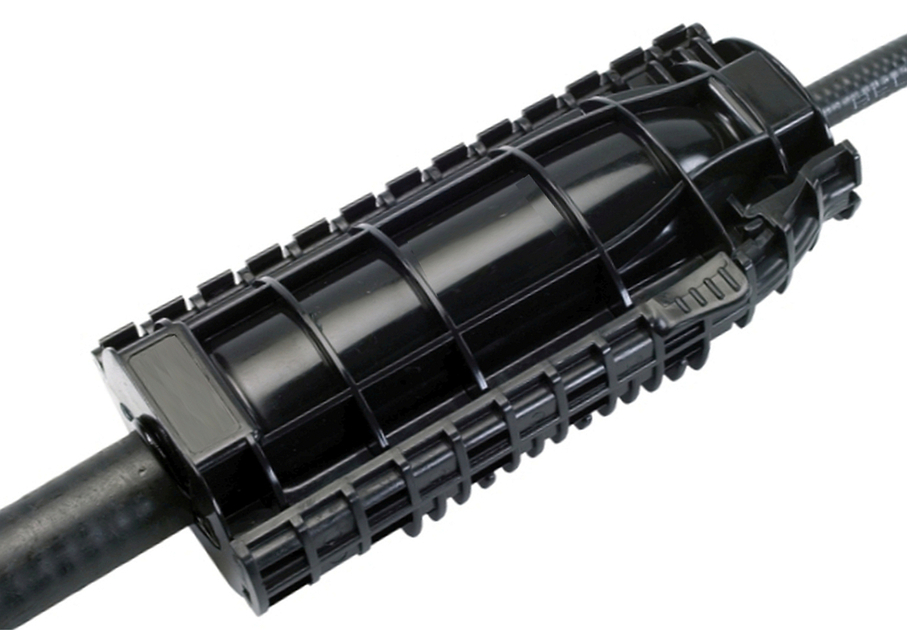

GSIC Weatherproofing Gel Sealed Antenna Transition Boot, 1/2 inch cable, large
Features and Benefits
- Gel-sealed weatherproofing boots for sealing coaxial cable connection points providing an efficient moisture block
- Wraparound design eliminates the need to disconnect the connectors before installation
- No tape, no mastics or tools required for installation and removal
Specifications
Product Classification
| Regional Availability | EMEA |
| Product Type | Weatherproofing boot |
| Product Series | GSIC |
General Specifications
| Application | ½” Jumper to DIN connector |
| Color | Black |
Dimensions
| Length | 117 mm | 4.606 in |
| Cable Diameter for Seal, maximum | 17 mm | 0.669 in |
| Cable Diameter for Seal, minimum | 13 mm | 0.512 in |
| Inner Diameter | 26 mm | 1.024 in |
Material Specifications
| Material Type | Engineered plastic |
Environmental Specifications
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Weatherproofing Method | IP68 |
Packaging and Weights
| Packaging quantity | 1 |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
Product Classification
| Regional Availability | EMEA |
| Product Type | Weatherproofing boot |
| Product Series | GSIC |
General Specifications
| Application | ½” Jumper to DIN connector |
| Color | Black |
Dimensions
| Length | 117 mm | 4.606 in |
| Cable Diameter for Seal, maximum | 17 mm | 0.669 in |
| Cable Diameter for Seal, minimum | 13 mm | 0.512 in |
| Inner Diameter | 26 mm | 1.024 in |
Material Specifications
| Material Type | Engineered plastic |
Environmental Specifications
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Weatherproofing Method | IP68 |
Packaging and Weights
| Packaging quantity | 1 |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
