760259816 | HCM2-19-SS-1U-WH
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

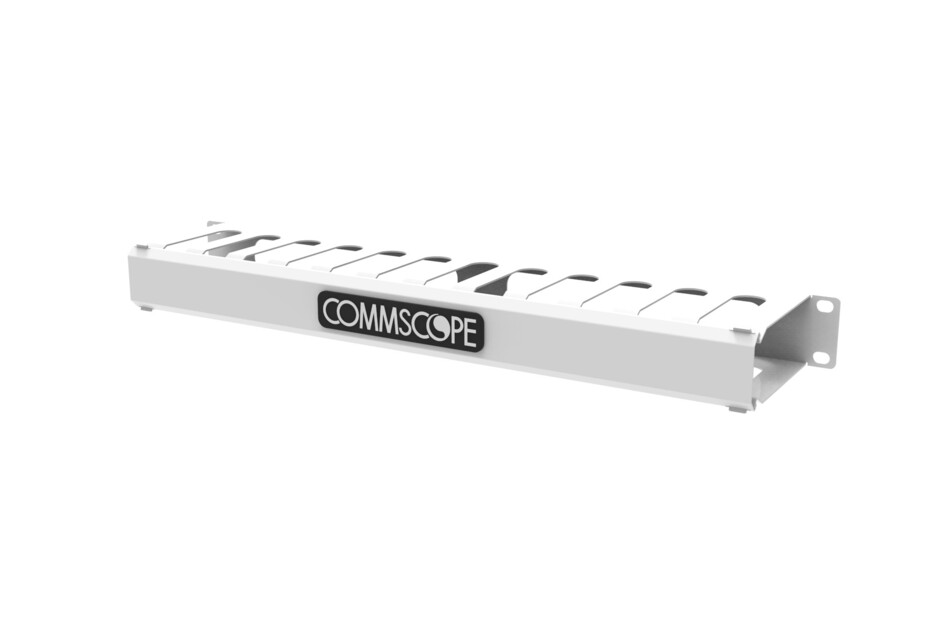

CableGuide Essential, Horizontal Cable Management Assembly, 1U, white
Specifications
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Horizontal cable management |
General Specifications
| Configuration Type | Single-sided |
| Color | White |
| Orientation | Horizontal |
| Rack Units | 1 |
Dimensions
| Height | 48.260 mm | 1.9 in |
| Width | 482.600 mm | 19 in |
| Depth | 106.426 mm | 4.19 in |
Material Specifications
| Finish | Powder-coated, smooth |
| Material Type | Steel |
Packaging and Weights
| Included | Four M6 x 12 mm mounting screws |
| Packaging quantity | 1 |
| Weight, net | 0.798 kg | 1.76 lb |
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Horizontal cable management |
General Specifications
| Configuration Type | Single-sided |
| Color | White |
| Orientation | Horizontal |
| Rack Units | 1 |
Dimensions
| Height | 48.260 mm | 1.9 in |
| Width | 482.600 mm | 19 in |
| Depth | 106.426 mm | 4.19 in |
Material Specifications
| Finish | Powder-coated, smooth |
| Material Type | Steel |
Packaging and Weights
| Included | Four M6 x 12 mm mounting screws |
| Packaging quantity | 1 |
| Weight, net | 0.798 kg | 1.76 lb |
Documentation & Downloads
Building Information Modeling (BIM) Objects
Customer Drawing
Installation Instruction
Product Specification
Visio Stencil
Warranty
Building Information Modeling (BIM) Objects
Customer Drawing
Installation Instruction
Product Compliance Documentation
Product Specification
Visio Stencil
Warranty
