CW5249-000 | COWO-L102

Base Product: COWO

Available in:
EMEA

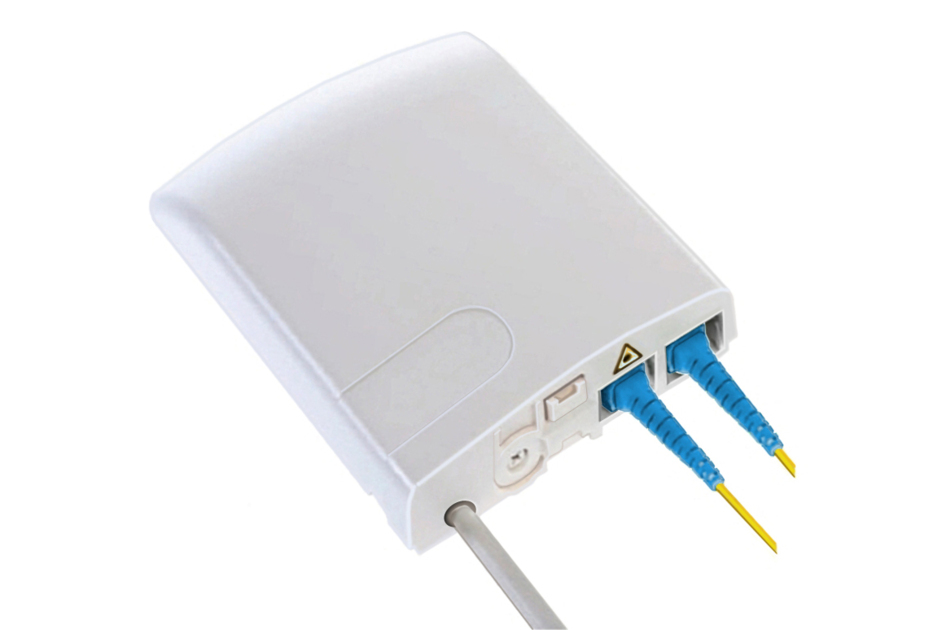

COWO Customer Wall Outlet, 4 LC/UPC ports, no pigtails

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Features and Benefits

Allows easy and unobtrusive termination of fiber optic cables in an office, home or communications room
Very flat design, mounts on a standard flush mount electrical outlet
Possibility to invert the adapter in the holder to prevent disconnection when pulling the patch cords

Specifications

Product Classification

Regional Availability	EMEA
Product Type	Fiber wall outlet
Product Series	COWO

General Specifications

Color	White
Cover Type	Hinged with latches
Interface Type	LC/UPC
Lock Type	Lead-wire seal \| Screw
Mounting	Wall mount
Splices Included, quantity	0
Total Ports, quantity	4

Dimensions

Height	115.062 mm \| 4.53 in
Width	80.01 mm \| 3.15 in
Depth	24.384 mm \| 0.96 in

Outline Drawing

Click on image to enlarge.

Material Specifications

Material Type

LSZH thermoplastic

Optical Specifications

Fiber Mode

Singlemode

Environmental Specifications

Operating Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Environmental Space	Indoor

Packaging and Weights

Packaging quantity

Regulatory Compliance/Certifications

Agency	Classification
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS	Compliant
